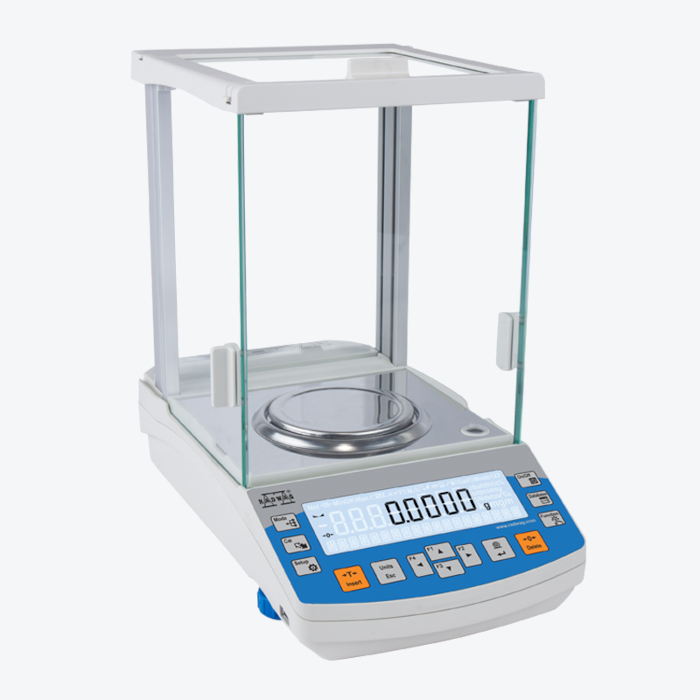

Balance of the AS R1 PLUS series is a standard analytical weighing device of the SYNERGY LAB line. The AS R1 PLUS is exceptional due to a range of modern constructional and system solutions that guarantee reliability, precision and accuracy of measurement, and make everyday operation easy.

Ergonomic Mechanical Design

The latest AS R1 PLUS analytical balance features spacious weighing chamber, and the open-door clearance facilitates easy access to the weighing pan. With this it is possible to use laboratory glassware of various sizes. New aluminium base is a guarantee for weighing system stability.

Dual-CLICK system allows tool-free assembly and disassembly of the weighing chamber, and a special design
of guides for weighing chamber panes (no rims) makes keeping the device clean convenient.

Innovative construction solutions increase balance durability and reliability in long-term operation.

Levelling System

Standard AS R1 PLUS balances are equipped with a levelling device located at the front of the weighing chamber, which facilitates level control.

Levelling operation is now simplified and easier due to the reduced quantity of adjustable supporting points (2 points).

Intuitive Operation

Balances are equipped with LCD display ensuring clear presentation of the weighing result. Direct access to functions and databases is possible via the following keys:

Database – direct access to databases,
Function – direct access to basic functions,
F1-F4 – programmable function keys and menu navigation keys.

AS R1 PLUS analytical balances signal operated working mode, computer connection, battery status, weighing and service functions via pictograms. The quantity of displayed weighing units is also expanded. Dedicated status bar enables display of additional messages, e.g. product name, tare value. Real-time mass measurement is presented using bar graph.

ALIBI Memory

Data safety is ensured by the ALIBI memory integrated into AS R1 PLUS balances, which enables record of up to 100 000 weighings. ALIBI guarantees continuity of data collection over a long period of time.

Data Protection

Access to valuable information is possible after logging. The administrator manages the data access configuration.

Databases

The information system is based on 5 databases, which allows several users to work with several product databases, and the registered weighing results can be subject to further analysis.

The data is registered in 5 databases:

operators (up to 10 users),
products (up to 1000 products),
weighings (up to 5000 weighings),
tares (up to 100 tares),
ALIBI memory (up to 100 000 weighings).

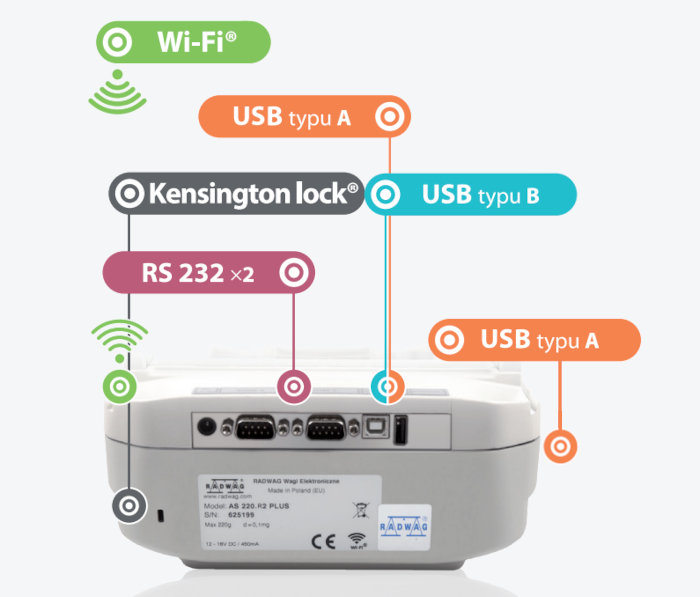

Communication Interfaces

The functionality of AS R1 PLUS balances can be expanded using the following communication interfaces: USB-A, USB-B, RS 232, Ethernet, Wi-Fi (option).

The additional USB port located at the front of the balance enables easy and fast communication with the USB flash drive, it is possible to connect additional devices via this port too.

AS PLUS balances are equipped with Kensington Lock, which allows to secure the device against theft.

2 years warranty

Datasheet

Maximum capacity [Max]

220 g

Minimum load

10 mg

Readability [d]

0,1 mg

Tare range

-220 g

Standard repeatability [5% Max]

0,07 mg

Standard repeatability [Max]

0,08 mg

Standard minimum weight (USP)

140 mg

Standard minimum weight (U=1%, k=2)

14 mg

Permissible repeatability [5% Max]

0,09 mg

Permissible repeatability [Max]

0,1 mg

Linearity

±0,2 mg

Stabilization time

2 s

Adjustment

external

Leveling system

manual

OIML Class

Display

LCD (backlit)

Weighing chamber doors

manualne

Protection class

IP 43

Delivery components

Balance, weighing pan, weighing pan shield, bottom cover, power supply.

Communication interface

2×RS232, 2×USB-A (interchangeable), USB-B, Wi-Fi (option)

Power supply

Adapter: 100 – 240V AC 50/60Hz 0,6A; 12V DC 1,2A
Balance: 12 – 15V DC 0,4A max

Operating temperature

+10 ÷ +40 °C

Relative humidity

40% ÷ 80%

Weighing pan dimensions

ø100 mm

Packaging dimensions

490×400×520 mm

Net weight

7,3 kg

Gross weight

9,3 kg

This image is for reference only.

close Exit

This image is for reference only.

Availability:

To order

Estimated shipping date :

10 working days

Price:

Individual pricing

Select
a variant:

AS 120.R1 PLUS Analytical Balancekeyboard_arrow_down

AS 220.R1 PLUS Analytical Balance
Max: 220g | d: 0,1mg
AS 120.R1 PLUS Analytical Balance
Max: 120g | d: 0,1mg

Options:

Wi-Fi Interface (111.93 USD)

Class I Verification (36.90 USD)

emailAsk about the product

Rating:

star star star star star

Code:

WL-104-0230

Overview

AS 120.R1 PLUS Analytical Balance

Ergonomic Mechanical Design

Levelling System

Intuitive Operation

Balances are equipped with LCD display ensuring clear presentation of the weighing result. Direct access to functions and databases is possible via the following keys:

Database – direct access to databases,
Function – direct access to basic functions,
F1-F4 – programmable function keys and menu navigation keys.

ALIBI Memory

Data Protection

Access to valuable information is possible after logging. The administrator manages the data access configuration.

Databases

operators (up to 10 users),
products (up to 1000 products),
weighings (up to 5000 weighings),
tares (up to 100 tares),
ALIBI memory (up to 100 000 weighings).

Communication Interfaces

2 years warranty

Datasheet

Maximum capacity [Max]

120 g

Minimum load

10 mg

Readability [d]

0,1 mg

Tare range

-120 g

Standard repeatability [5% Max]

0,06 mg

Standard repeatability [Max]

0,08 mg

Standard minimum weight (USP)

120 mg

Standard minimum weight (U=1%, k=2)

12 mg

Permissible repeatability [5% Max]

0,09 mg

Permissible repeatability [Max]

0,1 mg

Linearity

±0,2 mg

Stabilization time

2 s

Adjustment

external

Leveling system

manual

OIML Class

Display

LCD (backlit)

Weighing chamber doors

manualne

Protection class

IP 43

Delivery components

Balance, weighing pan, weighing pan shield, centring ring, bottom cover, power supply.

Communication interface

2×RS232, 2×USB-A (interchangeable), USB-B, Wi-Fi (option)

Power supply

Adapter: 100 – 240V AC 50/60Hz 0,6A; 12V DC 1,2A
Balance: 12 – 15V DC 0,4A max

Operating temperature

+10 ÷ +40 °C

Relative humidity

40% ÷ 80%

Weighing pan dimensions

ø100 mm

Packaging dimensions

490×400×520 mm

Net weight

7,3 kg

Gross weight

9,3 kg
