HX7 Multifunctional Scale

HX7.1,5.F1 Multifunctional Scale
This image is for reference only.
HX7.1,5.F1 Multifunctional ScaleHX7.1,5.F1 Multifunctional Scale
close Exit
This image is for reference only.
HX7.1,5.F1 Multifunctional ScaleHX7.1,5.F1 Multifunctional Scale
Availability:
In stock
Estimated shipping date :
5 working days
Price:
Individual pricing
Select
a variant:
HX7.1,5.F1 Multifunctional Scalekeyboard_arrow_down
  • HX7.1,5.F1 Multifunctional Scale
    Max: 1.5kg | d: 0,5g
  • HX7.3.F1 Multifunctional Scale
    Max: 3kg | d: 1g
  • HX7.6.F1 Multifunctional Scale
    Max: 6kg | d: 2g
  • HX7.15.F1 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.30.F1 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.30.C2 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.15.C2 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.60.C2 Multifunctional Scale
    Max: 60kg | d: 20g
  • HX7.150.C2 Multifunctional Scale
    Max: 150kg | d: 50g
  • HX7.300.C2 Multifunctional Scale
    Max: 300kg | d: 100g
  • HX7.15.C3 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.30.C3 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.60.C3 Multifunctional Scale
    Max: 60kg | d: 20g
  • HX7.150.C3 Multifunctional Scale
    Max: 150kg | d: 50g
  • HX7.300.C3 Multifunctional Scale
    Max: 300kg | d: 100g
Options:
Selectkeyboard_arrow_down
  • None
  • Dual Weighing Range
Selectkeyboard_arrow_down
  • None
  • Class III Verification
emailAsk about the product
Rating:
star star star star star
Code:
WP-121-0002

Overview




{{model}}


Design of the HX7 C scale has been based on the latest solutions and an advanced computing platform.





HX7 C

he scale comprises PUE HX7 terminal made of AISI 304 stainless steel ensuring high ingress protection, i.e. IP66 / IP68, and 1-load-cell powder-coated platform.

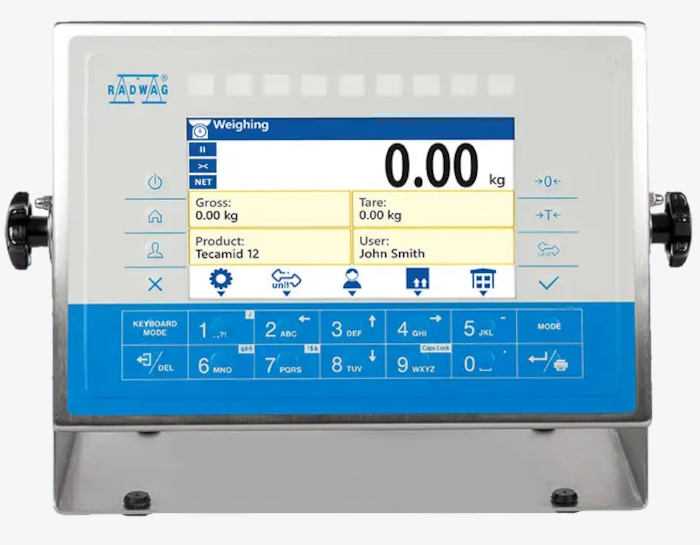

At the front of the terminal there is a 7” colour graphic display. Characteristics such as the simplicity of operation, a clear menu and an intuitive information layout guarantee comfort of use. The top part of the operation panel features a bar graph consisting of 9 red and green diode fields.

The bar graph is a graphic visualisation informing the user on a current net weight of a product presented with reference to the scale range or declared min and max thresholds.







Interfaces

At the back of the housing there are hermetic connectors of RS232, RS485,
USB and Ethernet communication interfaces, plus digital inputs/outputs and analogue output. This enables cooperation with external devices such as barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

With use of the bracket you can either place the terminal at any flat horizontal surface, or fix it to the wall adjusting the tilt respectively to suit your needs.













Software

The terminal's software allows carrying out processes such as weighing, parts counting, dosing, labelling, formulations and percent weighing. Terminal’s system of information is based on numerous databases (users, products, weighings, packaging, formulations, customers) and ALIBI memory which guarantees stored data safety.














CE
CE
Verification
Verification
2 years warranty
2 years warranty

Datasheet

Maximum capacity [Max]
1,5 kg
Minimum load
10 g
Readability [d]
0,5 g
Verification unit [e]
0,5 g
Tare range
-1,5 kg
Max readability for non-verified scale
0,2 g
OIML Class
III
Display
7” graphic colour
Protection class
IP 65 construction, IP 66/68 indicator
USB Interface
1× standard, 1× option
ETHERNET Interface
1× standard
EtherNet/IP Interface
1 × option (RJ45)
Profinet Interface
1 × option (RJ45)
RS232 Interface
1× standard, 1× option
RS485 Interface
1× option
IN/OUT Interface
4 IN 4 OUT standard, 12 IN 12 OUT option
Modbus RTU module
1× standard
Analog output module (option)
4-20mA, 0-10V
Power supply
100 – 240 V AC 50/60 Hz
Power consumption max.
25 W
Optional power supply
12-24V DC
Operating temperature
-10 ÷ +40 °C
Storage temperature
-10 ÷ +50 °C
Relative humidity
10% ÷ 80% RH no condensation
Indicator
PUE HX7
Keypad
membrane
Number of buttons
22
Construction
mild steel St3S
Weighing pan material
stainless steel AISI304
Weighing pan dimensions
300×300 mm
Packaging dimensions
390×570×390 mm
Net weight
9,3 kg
Gross weight
10,7 kg
Max number of platforms
2
HX7.3.F1 Multifunctional Scale
This image is for reference only.
HX7.3.F1 Multifunctional ScaleHX7.3.F1 Multifunctional Scale
close Exit
This image is for reference only.
HX7.3.F1 Multifunctional ScaleHX7.3.F1 Multifunctional Scale
Availability:
In stock
Estimated shipping date :
5 working days
Price:
Individual pricing
Select
a variant:
HX7.3.F1 Multifunctional Scalekeyboard_arrow_down
  • HX7.1,5.F1 Multifunctional Scale
    Max: 1.5kg | d: 0,5g
  • HX7.3.F1 Multifunctional Scale
    Max: 3kg | d: 1g
  • HX7.6.F1 Multifunctional Scale
    Max: 6kg | d: 2g
  • HX7.15.F1 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.30.F1 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.30.C2 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.15.C2 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.60.C2 Multifunctional Scale
    Max: 60kg | d: 20g
  • HX7.150.C2 Multifunctional Scale
    Max: 150kg | d: 50g
  • HX7.300.C2 Multifunctional Scale
    Max: 300kg | d: 100g
  • HX7.15.C3 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.30.C3 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.60.C3 Multifunctional Scale
    Max: 60kg | d: 20g
  • HX7.150.C3 Multifunctional Scale
    Max: 150kg | d: 50g
  • HX7.300.C3 Multifunctional Scale
    Max: 300kg | d: 100g
Options:
Selectkeyboard_arrow_down
  • None
  • Class III Verification
Selectkeyboard_arrow_down
  • None
  • Dual Weighing Range
emailAsk about the product
Rating:
star star star star star
Code:
WP-121-0003

Overview




{{model}}


Design of the HX7 C scale has been based on the latest solutions and an advanced computing platform.





HX7 C

he scale comprises PUE HX7 terminal made of AISI 304 stainless steel ensuring high ingress protection, i.e. IP66 / IP68, and 1-load-cell powder-coated platform.

At the front of the terminal there is a 7” colour graphic display. Characteristics such as the simplicity of operation, a clear menu and an intuitive information layout guarantee comfort of use. The top part of the operation panel features a bar graph consisting of 9 red and green diode fields.

The bar graph is a graphic visualisation informing the user on a current net weight of a product presented with reference to the scale range or declared min and max thresholds.







Interfaces

At the back of the housing there are hermetic connectors of RS232, RS485,
USB and Ethernet communication interfaces, plus digital inputs/outputs and analogue output. This enables cooperation with external devices such as barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

With use of the bracket you can either place the terminal at any flat horizontal surface, or fix it to the wall adjusting the tilt respectively to suit your needs.













Software

The terminal's software allows carrying out processes such as weighing, parts counting, dosing, labelling, formulations and percent weighing. Terminal’s system of information is based on numerous databases (users, products, weighings, packaging, formulations, customers) and ALIBI memory which guarantees stored data safety.














CE
CE
Verification
Verification
2 years warranty
2 years warranty

Datasheet

Maximum capacity [Max]
3 kg
Minimum load
20 g
Readability [d]
1 g
Verification unit [e]
1 g
Tare range
-3 kg
Max readability for non-verified scale
0,2 g
OIML Class
III
Display
7” graphic colour
Protection class
IP 65 construction, IP 66/68 indicator
USB Interface
1× standard, 1× option
ETHERNET Interface
1× standard
EtherNet/IP Interface
1 × option (RJ45)
Profinet Interface
1 × option (RJ45)
RS232 Interface
1× standard, 1× option
RS485 Interface
1× option
IN/OUT Interface
4 IN 4 OUT standard, 12 IN 12 OUT option
Modbus RTU module
1× standard
Analog output module (option)
4-20mA, 0-10V
Power supply
100 – 240 V AC 50/60 Hz
Power consumption max.
25 W
Optional power supply
12-24V DC
Operating temperature
-10 ÷ +40 °C
Storage temperature
-10 ÷ +50 °C
Relative humidity
10% ÷ 80% RH no condensation
Indicator
PUE HX7
Keypad
membrane
Number of buttons
22
Construction
mild steel St3S
Weighing pan material
stainless steel AISI304
Weighing pan dimensions
300×300 mm
Packaging dimensions
390×570×390 mm
Net weight
9,3 kg
Gross weight
10,7 kg
Max number of platforms
2
HX7.6.F1 Multifunctional Scale
This image is for reference only.
HX7.6.F1 Multifunctional ScaleHX7.6.F1 Multifunctional Scale
close Exit
This image is for reference only.
HX7.6.F1 Multifunctional ScaleHX7.6.F1 Multifunctional Scale
Availability:
In stock
Estimated shipping date :
5 working days
Price:
Individual pricing
Select
a variant:
HX7.6.F1 Multifunctional Scalekeyboard_arrow_down
  • HX7.1,5.F1 Multifunctional Scale
    Max: 1.5kg | d: 0,5g
  • HX7.3.F1 Multifunctional Scale
    Max: 3kg | d: 1g
  • HX7.6.F1 Multifunctional Scale
    Max: 6kg | d: 2g
  • HX7.15.F1 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.30.F1 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.30.C2 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.15.C2 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.60.C2 Multifunctional Scale
    Max: 60kg | d: 20g
  • HX7.150.C2 Multifunctional Scale
    Max: 150kg | d: 50g
  • HX7.300.C2 Multifunctional Scale
    Max: 300kg | d: 100g
  • HX7.15.C3 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.30.C3 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.60.C3 Multifunctional Scale
    Max: 60kg | d: 20g
  • HX7.150.C3 Multifunctional Scale
    Max: 150kg | d: 50g
  • HX7.300.C3 Multifunctional Scale
    Max: 300kg | d: 100g
Options:
Selectkeyboard_arrow_down
  • None
  • Class III Verification
Selectkeyboard_arrow_down
  • None
  • Dual Weighing Range
emailAsk about the product
Rating:
star star star star star
Code:
WP-121-0004

Overview




{{model}}


Design of the HX7 C scale has been based on the latest solutions and an advanced computing platform.





HX7 C

he scale comprises PUE HX7 terminal made of AISI 304 stainless steel ensuring high ingress protection, i.e. IP66 / IP68, and 1-load-cell powder-coated platform.

At the front of the terminal there is a 7” colour graphic display. Characteristics such as the simplicity of operation, a clear menu and an intuitive information layout guarantee comfort of use. The top part of the operation panel features a bar graph consisting of 9 red and green diode fields.

The bar graph is a graphic visualisation informing the user on a current net weight of a product presented with reference to the scale range or declared min and max thresholds.







Interfaces

At the back of the housing there are hermetic connectors of RS232, RS485,
USB and Ethernet communication interfaces, plus digital inputs/outputs and analogue output. This enables cooperation with external devices such as barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

With use of the bracket you can either place the terminal at any flat horizontal surface, or fix it to the wall adjusting the tilt respectively to suit your needs.













Software

The terminal's software allows carrying out processes such as weighing, parts counting, dosing, labelling, formulations and percent weighing. Terminal’s system of information is based on numerous databases (users, products, weighings, packaging, formulations, customers) and ALIBI memory which guarantees stored data safety.














CE
CE
Verification
Verification
2 years warranty
2 years warranty

Datasheet

Maximum capacity [Max]
6 kg
Minimum load
40 g
Readability [d]
2 g
Verification unit [e]
2 g
Tare range
-6 kg
Max readability for non-verified scale
0,2 g
OIML Class
III
Display
7” graphic colour
Protection class
IP 65 construction, IP 66/68 indicator
USB Interface
1× standard, 1× option
ETHERNET Interface
1× standard
EtherNet/IP Interface
1 × option (RJ45)
Profinet Interface
1 × option (RJ45)
RS232 Interface
1× standard, 1× option
RS485 Interface
1× option
IN/OUT Interface
4 IN 4 OUT standard, 12 IN 12 OUT option
Modbus RTU module
1× standard
Analog output module (option)
4-20mA, 0-10V
Power supply
100 – 240 V AC 50/60 Hz
Power consumption max.
25 W
Optional power supply
12-24V DC
Operating temperature
-10 ÷ +40 °C
Storage temperature
-10 ÷ +50 °C
Relative humidity
10% ÷ 80% RH no condensation
Indicator
PUE HX7
Keypad
membrane
Number of buttons
22
Construction
mild steel St3S
Weighing pan material
stainless steel AISI304
Weighing pan dimensions
300×300 mm
Packaging dimensions
570×390×170 mm
Net weight
9,3 kg
Gross weight
10,7 kg
Max number of platforms
2
HX7.15.F1 Multifunctional Scale
This image is for reference only.
HX7.15.F1 Multifunctional ScaleHX7.15.F1 Multifunctional Scale
close Exit
This image is for reference only.
HX7.15.F1 Multifunctional ScaleHX7.15.F1 Multifunctional Scale
Availability:
In stock
Estimated shipping date :
5 working days
Price:
Individual pricing
Select
a variant:
HX7.15.F1 Multifunctional Scalekeyboard_arrow_down
  • HX7.1,5.F1 Multifunctional Scale
    Max: 1.5kg | d: 0,5g
  • HX7.3.F1 Multifunctional Scale
    Max: 3kg | d: 1g
  • HX7.6.F1 Multifunctional Scale
    Max: 6kg | d: 2g
  • HX7.15.F1 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.30.F1 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.30.C2 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.15.C2 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.60.C2 Multifunctional Scale
    Max: 60kg | d: 20g
  • HX7.150.C2 Multifunctional Scale
    Max: 150kg | d: 50g
  • HX7.300.C2 Multifunctional Scale
    Max: 300kg | d: 100g
  • HX7.15.C3 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.30.C3 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.60.C3 Multifunctional Scale
    Max: 60kg | d: 20g
  • HX7.150.C3 Multifunctional Scale
    Max: 150kg | d: 50g
  • HX7.300.C3 Multifunctional Scale
    Max: 300kg | d: 100g
Options:
Selectkeyboard_arrow_down
  • None
  • Class III Verification
Selectkeyboard_arrow_down
  • None
  • Dual Weighing Range
emailAsk about the product
Rating:
star star star star star
Code:
WP-121-0001

Overview




{{model}}


Design of the HX7 C scale has been based on the latest solutions and an advanced computing platform.





HX7 C

he scale comprises PUE HX7 terminal made of AISI 304 stainless steel ensuring high ingress protection, i.e. IP66 / IP68, and 1-load-cell powder-coated platform.

At the front of the terminal there is a 7” colour graphic display. Characteristics such as the simplicity of operation, a clear menu and an intuitive information layout guarantee comfort of use. The top part of the operation panel features a bar graph consisting of 9 red and green diode fields.

The bar graph is a graphic visualisation informing the user on a current net weight of a product presented with reference to the scale range or declared min and max thresholds.







Interfaces

At the back of the housing there are hermetic connectors of RS232, RS485,
USB and Ethernet communication interfaces, plus digital inputs/outputs and analogue output. This enables cooperation with external devices such as barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

With use of the bracket you can either place the terminal at any flat horizontal surface, or fix it to the wall adjusting the tilt respectively to suit your needs.













Software

The terminal's software allows carrying out processes such as weighing, parts counting, dosing, labelling, formulations and percent weighing. Terminal’s system of information is based on numerous databases (users, products, weighings, packaging, formulations, customers) and ALIBI memory which guarantees stored data safety.














CE
CE
Verification
Verification
2 years warranty
2 years warranty

Datasheet

Maximum capacity [Max]
15 kg
Minimum load
100 g
Readability [d]
5 g
Verification unit [e]
5 g
Tare range
-15 kg
Max readability for non-verified scale
0,5 g
OIML Class
III
Display
7” graphic colour
Protection class
IP 65 construction, IP 66/68 indicator
USB Interface
1× standard, 1× option
ETHERNET Interface
1× standard
EtherNet/IP Interface
1 × option (RJ45)
Profinet Interface
1 × option (RJ45)
RS232 Interface
1× standard, 1× option
RS485 Interface
1× option
IN/OUT Interface
4 IN 4 OUT standard, 12 IN 12 OUT option
Modbus RTU module
1× standard
Analog output module (option)
4-20mA, 0-10V
Power supply
100 – 240 V AC 50/60 Hz
Power consumption max.
25 W
Optional power supply
12-24V DC
Operating temperature
-10 ÷ +40 °C
Storage temperature
-10 ÷ +50 °C
Relative humidity
10% ÷ 80% RH no condensation
Indicator
PUE HX7
Keypad
membrane
Number of buttons
22
Construction
mild steel St3S
Weighing pan material
stainless steel AISI304
Weighing pan dimensions
300×300 mm
Packaging dimensions
390×570×390 mm
Net weight
9,3 kg
Gross weight
10,7 kg
Max number of platforms
2
HX7.30.F1 Multifunctional Scale
This image is for reference only.
HX7.30.F1 Multifunctional ScaleHX7.30.F1 Multifunctional Scale
close Exit
This image is for reference only.
HX7.30.F1 Multifunctional ScaleHX7.30.F1 Multifunctional Scale
Availability:
In stock
Estimated shipping date :
5 working days
Price:
Individual pricing
Select
a variant:
HX7.30.F1 Multifunctional Scalekeyboard_arrow_down
  • HX7.1,5.F1 Multifunctional Scale
    Max: 1.5kg | d: 0,5g
  • HX7.3.F1 Multifunctional Scale
    Max: 3kg | d: 1g
  • HX7.6.F1 Multifunctional Scale
    Max: 6kg | d: 2g
  • HX7.15.F1 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.30.F1 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.30.C2 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.15.C2 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.60.C2 Multifunctional Scale
    Max: 60kg | d: 20g
  • HX7.150.C2 Multifunctional Scale
    Max: 150kg | d: 50g
  • HX7.300.C2 Multifunctional Scale
    Max: 300kg | d: 100g
  • HX7.15.C3 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.30.C3 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.60.C3 Multifunctional Scale
    Max: 60kg | d: 20g
  • HX7.150.C3 Multifunctional Scale
    Max: 150kg | d: 50g
  • HX7.300.C3 Multifunctional Scale
    Max: 300kg | d: 100g
Options:
Selectkeyboard_arrow_down
  • None
  • Class III Verification
Selectkeyboard_arrow_down
  • None
  • Dual Weighing Range
emailAsk about the product
Rating:
star star star star star
Code:
WP-121-0005

Overview




{{model}}


Design of the HX7 C scale has been based on the latest solutions and an advanced computing platform.





HX7 C

he scale comprises PUE HX7 terminal made of AISI 304 stainless steel ensuring high ingress protection, i.e. IP66 / IP68, and 1-load-cell powder-coated platform.

At the front of the terminal there is a 7” colour graphic display. Characteristics such as the simplicity of operation, a clear menu and an intuitive information layout guarantee comfort of use. The top part of the operation panel features a bar graph consisting of 9 red and green diode fields.

The bar graph is a graphic visualisation informing the user on a current net weight of a product presented with reference to the scale range or declared min and max thresholds.







Interfaces

At the back of the housing there are hermetic connectors of RS232, RS485,
USB and Ethernet communication interfaces, plus digital inputs/outputs and analogue output. This enables cooperation with external devices such as barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

With use of the bracket you can either place the terminal at any flat horizontal surface, or fix it to the wall adjusting the tilt respectively to suit your needs.













Software

The terminal's software allows carrying out processes such as weighing, parts counting, dosing, labelling, formulations and percent weighing. Terminal’s system of information is based on numerous databases (users, products, weighings, packaging, formulations, customers) and ALIBI memory which guarantees stored data safety.














CE
CE
Verification
Verification
2 years warranty
2 years warranty

Datasheet

Maximum capacity [Max]
30 kg
Minimum load
200 g
Readability [d]
10 g
Verification unit [e]
10 g
Tare range
-30 kg
Max readability for non-verified scale
1 g
OIML Class
III
Display
7” graphic colour
Protection class
IP 65 construction, IP 66/68 indicator
USB Interface
1× standard, 1× option
ETHERNET Interface
1× standard
EtherNet/IP Interface
1 × option (RJ45)
Profinet Interface
1 × option (RJ45)
RS232 Interface
1× standard, 1× option
RS485 Interface
1× option
IN/OUT Interface
4 IN 4 OUT standard, 12 IN 12 OUT option
Modbus RTU module
1× standard
Analog output module (option)
4-20mA, 0-10V
Power supply
100 – 240 V AC 50/60 Hz
Power consumption max.
25 W
Optional power supply
12-24V DC
Operating temperature
-10 ÷ +40 °C
Storage temperature
-10 ÷ +50 °C
Relative humidity
10% ÷ 80% RH no condensation
Indicator
PUE HX7
Keypad
membrane
Number of buttons
22
Construction
mild steel St3S
Weighing pan material
stainless steel AISI304
Weighing pan dimensions
300×300 mm
Packaging dimensions
390×570×390 mm
Net weight
9,3 kg
Gross weight
10,7 kg
Max number of platforms
2
HX7.30.C2 Multifunctional Scale
This image is for reference only.
HX7.30.C2 Multifunctional ScaleHX7.30.C2 Multifunctional Scale
close Exit
This image is for reference only.
HX7.30.C2 Multifunctional ScaleHX7.30.C2 Multifunctional Scale
Availability:
In stock
Estimated shipping date :
5 working days
Price:
Individual pricing
Select
a variant:
HX7.30.C2 Multifunctional Scalekeyboard_arrow_down
  • HX7.1,5.F1 Multifunctional Scale
    Max: 1.5kg | d: 0,5g
  • HX7.3.F1 Multifunctional Scale
    Max: 3kg | d: 1g
  • HX7.6.F1 Multifunctional Scale
    Max: 6kg | d: 2g
  • HX7.15.F1 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.30.F1 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.30.C2 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.15.C2 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.60.C2 Multifunctional Scale
    Max: 60kg | d: 20g
  • HX7.150.C2 Multifunctional Scale
    Max: 150kg | d: 50g
  • HX7.300.C2 Multifunctional Scale
    Max: 300kg | d: 100g
  • HX7.15.C3 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.30.C3 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.60.C3 Multifunctional Scale
    Max: 60kg | d: 20g
  • HX7.150.C3 Multifunctional Scale
    Max: 150kg | d: 50g
  • HX7.300.C3 Multifunctional Scale
    Max: 300kg | d: 100g
Options:
Selectkeyboard_arrow_down
  • None
  • Class III Verification
Selectkeyboard_arrow_down
  • None
  • Dual Weighing Range
emailAsk about the product
Rating:
star star star star star
Code:
WP-121-0007

Overview




{{model}}


Design of the HX7 C scale has been based on the latest solutions and an advanced computing platform.





HX7 C

he scale comprises PUE HX7 terminal made of AISI 304 stainless steel ensuring high ingress protection, i.e. IP66 / IP68, and 1-load-cell powder-coated platform.

At the front of the terminal there is a 7” colour graphic display. Characteristics such as the simplicity of operation, a clear menu and an intuitive information layout guarantee comfort of use. The top part of the operation panel features a bar graph consisting of 9 red and green diode fields.

The bar graph is a graphic visualisation informing the user on a current net weight of a product presented with reference to the scale range or declared min and max thresholds.







Interfaces

At the back of the housing there are hermetic connectors of RS232, RS485,
USB and Ethernet communication interfaces, plus digital inputs/outputs and analogue output. This enables cooperation with external devices such as barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

With use of the bracket you can either place the terminal at any flat horizontal surface, or fix it to the wall adjusting the tilt respectively to suit your needs.













Software

The terminal's software allows carrying out processes such as weighing, parts counting, dosing, labelling, formulations and percent weighing. Terminal’s system of information is based on numerous databases (users, products, weighings, packaging, formulations, customers) and ALIBI memory which guarantees stored data safety.














CE
CE
Verification
Verification
2 years warranty
2 years warranty

Datasheet

Maximum capacity [Max]
30 kg
Minimum load
200 g
Readability [d]
10 g
Verification unit [e]
10 g
Tare range
-30 kg
Max readability for non-verified scale
1 g
OIML Class
III
Display
7” graphic colour
Protection class
IP 65 construction, IP 66/68 indicator
USB Interface
1× standard, 1× option
ETHERNET Interface
1× standard
EtherNet/IP Interface
1 × option (RJ45)
Profinet Interface
1 × option (RJ45)
RS232 Interface
1× standard, 1× option
RS485 Interface
1× option
IN/OUT Interface
4 IN 4 OUT standard, 12 IN 12 OUT option
Modbus RTU module
1× standard
Analog output module (option)
4-20mA, 0-10V
Power supply
100 – 240 V AC 50/60 Hz
Power consumption max.
25 W
Optional power supply
12-24V DC
Operating temperature
-10 ÷ +40 °C
Storage temperature
-10 ÷ +50 °C
Relative humidity
10% ÷ 80% RH no condensation
Indicator
PUE HX7
Keypad
membrane
Number of buttons
22
Construction
mild steel St3S
Weighing pan material
stainless steel AISI304
Weighing pan dimensions
400×500 mm
Packaging dimensions
620×720×430 mm
Net weight
14,8 kg
Gross weight
18 kg
Max number of platforms
2
HX7.15.C2 Multifunctional Scale
This image is for reference only.
HX7.15.C2 Multifunctional ScaleHX7.15.C2 Multifunctional Scale
close Exit
This image is for reference only.
HX7.15.C2 Multifunctional ScaleHX7.15.C2 Multifunctional Scale
Availability:
In stock
Estimated shipping date :
5 working days
Price:
Individual pricing
Select
a variant:
HX7.15.C2 Multifunctional Scalekeyboard_arrow_down
  • HX7.1,5.F1 Multifunctional Scale
    Max: 1.5kg | d: 0,5g
  • HX7.3.F1 Multifunctional Scale
    Max: 3kg | d: 1g
  • HX7.6.F1 Multifunctional Scale
    Max: 6kg | d: 2g
  • HX7.15.F1 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.30.F1 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.30.C2 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.15.C2 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.60.C2 Multifunctional Scale
    Max: 60kg | d: 20g
  • HX7.150.C2 Multifunctional Scale
    Max: 150kg | d: 50g
  • HX7.300.C2 Multifunctional Scale
    Max: 300kg | d: 100g
  • HX7.15.C3 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.30.C3 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.60.C3 Multifunctional Scale
    Max: 60kg | d: 20g
  • HX7.150.C3 Multifunctional Scale
    Max: 150kg | d: 50g
  • HX7.300.C3 Multifunctional Scale
    Max: 300kg | d: 100g
Options:
Selectkeyboard_arrow_down
  • None
  • Class III Verification
Selectkeyboard_arrow_down
  • None
  • Dual Weighing Range
emailAsk about the product
Rating:
star star star star star
Code:
WP-121-0006

Overview




{{model}}


Design of the HX7 C scale has been based on the latest solutions and an advanced computing platform.





HX7 C

he scale comprises PUE HX7 terminal made of AISI 304 stainless steel ensuring high ingress protection, i.e. IP66 / IP68, and 1-load-cell powder-coated platform.

At the front of the terminal there is a 7” colour graphic display. Characteristics such as the simplicity of operation, a clear menu and an intuitive information layout guarantee comfort of use. The top part of the operation panel features a bar graph consisting of 9 red and green diode fields.

The bar graph is a graphic visualisation informing the user on a current net weight of a product presented with reference to the scale range or declared min and max thresholds.







Interfaces

At the back of the housing there are hermetic connectors of RS232, RS485,
USB and Ethernet communication interfaces, plus digital inputs/outputs and analogue output. This enables cooperation with external devices such as barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

With use of the bracket you can either place the terminal at any flat horizontal surface, or fix it to the wall adjusting the tilt respectively to suit your needs.













Software

The terminal's software allows carrying out processes such as weighing, parts counting, dosing, labelling, formulations and percent weighing. Terminal’s system of information is based on numerous databases (users, products, weighings, packaging, formulations, customers) and ALIBI memory which guarantees stored data safety.














CE
CE
Verification
Verification
2 years warranty
2 years warranty

Datasheet

Maximum capacity [Max]
15 kg
Minimum load
100 g
Readability [d]
5 g
Verification unit [e]
5 g
Tare range
-15 kg
Max readability for non-verified scale
1 g
OIML Class
III
Display
7” graphic colour
Protection class
IP 65 construction, IP 66/68 indicator
USB Interface
1× standard, 1× option
ETHERNET Interface
1× standard
EtherNet/IP Interface
1 × option (RJ45)
Profinet Interface
1 × option (RJ45)
RS232 Interface
1× standard, 1× option
RS485 Interface
1× option
IN/OUT Interface
4 IN 4 OUT standard, 12 IN 12 OUT option
Modbus RTU module
1× standard
Analog output module (option)
4-20mA, 0-10V
Power supply
100 – 240 V AC 50/60 Hz
Power consumption max.
25 W
Optional power supply
12-24V DC
Operating temperature
-10 ÷ +40 °C
Storage temperature
-10 ÷ +50 °C
Relative humidity
10% ÷ 80% RH no condensation
Indicator
PUE HX7
Keypad
membrane
Number of buttons
22
Construction
mild steel St3S
Weighing pan material
stainless steel AISI304
Weighing pan dimensions
400×500 mm
Packaging dimensions
620×720×430 mm
Net weight
14,8 kg
Gross weight
17,7 kg
Max number of platforms
2
HX7.60.C2 Multifunctional Scale
This image is for reference only.
HX7.60.C2 Multifunctional ScaleHX7.60.C2 Multifunctional Scale
close Exit
This image is for reference only.
HX7.60.C2 Multifunctional ScaleHX7.60.C2 Multifunctional Scale
Availability:
In stock
Estimated shipping date :
5 working days
Price:
Individual pricing
Select
a variant:
HX7.60.C2 Multifunctional Scalekeyboard_arrow_down
  • HX7.1,5.F1 Multifunctional Scale
    Max: 1.5kg | d: 0,5g
  • HX7.3.F1 Multifunctional Scale
    Max: 3kg | d: 1g
  • HX7.6.F1 Multifunctional Scale
    Max: 6kg | d: 2g
  • HX7.15.F1 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.30.F1 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.30.C2 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.15.C2 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.60.C2 Multifunctional Scale
    Max: 60kg | d: 20g
  • HX7.150.C2 Multifunctional Scale
    Max: 150kg | d: 50g
  • HX7.300.C2 Multifunctional Scale
    Max: 300kg | d: 100g
  • HX7.15.C3 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.30.C3 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.60.C3 Multifunctional Scale
    Max: 60kg | d: 20g
  • HX7.150.C3 Multifunctional Scale
    Max: 150kg | d: 50g
  • HX7.300.C3 Multifunctional Scale
    Max: 300kg | d: 100g
Options:
Selectkeyboard_arrow_down
  • None
  • Class III Verification
Selectkeyboard_arrow_down
  • None
  • Dual Weighing Range
emailAsk about the product
Rating:
star star star star star
Code:
WP-121-0008

Overview




{{model}}


Design of the HX7 C scale has been based on the latest solutions and an advanced computing platform.





HX7 C

he scale comprises PUE HX7 terminal made of AISI 304 stainless steel ensuring high ingress protection, i.e. IP66 / IP68, and 1-load-cell powder-coated platform.

At the front of the terminal there is a 7” colour graphic display. Characteristics such as the simplicity of operation, a clear menu and an intuitive information layout guarantee comfort of use. The top part of the operation panel features a bar graph consisting of 9 red and green diode fields.

The bar graph is a graphic visualisation informing the user on a current net weight of a product presented with reference to the scale range or declared min and max thresholds.







Interfaces

At the back of the housing there are hermetic connectors of RS232, RS485,
USB and Ethernet communication interfaces, plus digital inputs/outputs and analogue output. This enables cooperation with external devices such as barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

With use of the bracket you can either place the terminal at any flat horizontal surface, or fix it to the wall adjusting the tilt respectively to suit your needs.













Software

The terminal's software allows carrying out processes such as weighing, parts counting, dosing, labelling, formulations and percent weighing. Terminal’s system of information is based on numerous databases (users, products, weighings, packaging, formulations, customers) and ALIBI memory which guarantees stored data safety.














CE
CE
Verification
Verification
2 years warranty
2 years warranty

Datasheet

Maximum capacity [Max]
60 kg
Minimum load
400 g
Readability [d]
20 g
Verification unit [e]
20 g
Tare range
-60 kg
Max readability for non-verified scale
2 g
OIML Class
III
Display
7” graphic colour
Protection class
IP 65 construction, IP 66/68 indicator
USB Interface
1× standard, 1× option
ETHERNET Interface
1× standard
EtherNet/IP Interface
1 × option (RJ45)
Profinet Interface
1 × option (RJ45)
RS232 Interface
1× standard, 1× option
RS485 Interface
1× option
IN/OUT Interface
4 IN 4 OUT standard, 12 IN 12 OUT option
Modbus RTU module
1× standard
Analog output module (option)
4-20mA, 0-10V
Power supply
100 – 240 V AC 50/60 Hz
Power consumption max.
25 W
Optional power supply
12-24V DC
Operating temperature
-10 ÷ +40 °C
Storage temperature
-10 ÷ +50 °C
Relative humidity
10% ÷ 80% RH no condensation
Indicator
PUE HX7
Keypad
membrane
Number of buttons
22
Construction
mild steel St3S
Weighing pan material
stainless steel AISI304
Weighing pan dimensions
400×500 mm
Packaging dimensions
620×720×430 mm
Net weight
14,8 kg
Gross weight
17,7 kg
Max number of platforms
2
HX7.150.C2 Multifunctional Scale
This image is for reference only.
HX7.150.C2 Multifunctional ScaleHX7.150.C2 Multifunctional Scale
close Exit
This image is for reference only.
HX7.150.C2 Multifunctional ScaleHX7.150.C2 Multifunctional Scale
Availability:
In stock
Estimated shipping date :
5 working days
Price:
Individual pricing
Select
a variant:
HX7.150.C2 Multifunctional Scalekeyboard_arrow_down
  • HX7.1,5.F1 Multifunctional Scale
    Max: 1.5kg | d: 0,5g
  • HX7.3.F1 Multifunctional Scale
    Max: 3kg | d: 1g
  • HX7.6.F1 Multifunctional Scale
    Max: 6kg | d: 2g
  • HX7.15.F1 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.30.F1 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.30.C2 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.15.C2 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.60.C2 Multifunctional Scale
    Max: 60kg | d: 20g
  • HX7.150.C2 Multifunctional Scale
    Max: 150kg | d: 50g
  • HX7.300.C2 Multifunctional Scale
    Max: 300kg | d: 100g
  • HX7.15.C3 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.30.C3 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.60.C3 Multifunctional Scale
    Max: 60kg | d: 20g
  • HX7.150.C3 Multifunctional Scale
    Max: 150kg | d: 50g
  • HX7.300.C3 Multifunctional Scale
    Max: 300kg | d: 100g
Options:
Selectkeyboard_arrow_down
  • None
  • Class III Verification
Selectkeyboard_arrow_down
  • None
  • Dual Weighing Range
emailAsk about the product
Rating:
star star star star star
Code:
WP-121-0009

Overview




{{model}}


Design of the HX7 C scale has been based on the latest solutions and an advanced computing platform.





HX7 C

he scale comprises PUE HX7 terminal made of AISI 304 stainless steel ensuring high ingress protection, i.e. IP66 / IP68, and 1-load-cell powder-coated platform.

At the front of the terminal there is a 7” colour graphic display. Characteristics such as the simplicity of operation, a clear menu and an intuitive information layout guarantee comfort of use. The top part of the operation panel features a bar graph consisting of 9 red and green diode fields.

The bar graph is a graphic visualisation informing the user on a current net weight of a product presented with reference to the scale range or declared min and max thresholds.







Interfaces

At the back of the housing there are hermetic connectors of RS232, RS485,
USB and Ethernet communication interfaces, plus digital inputs/outputs and analogue output. This enables cooperation with external devices such as barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

With use of the bracket you can either place the terminal at any flat horizontal surface, or fix it to the wall adjusting the tilt respectively to suit your needs.













Software

The terminal's software allows carrying out processes such as weighing, parts counting, dosing, labelling, formulations and percent weighing. Terminal’s system of information is based on numerous databases (users, products, weighings, packaging, formulations, customers) and ALIBI memory which guarantees stored data safety.














CE
CE
Verification
Verification
2 years warranty
2 years warranty

Datasheet

Maximum capacity [Max]
150 kg
Minimum load
1 kg
Readability [d]
50 g
Verification unit [e]
50 g
Tare range
-150 kg
Max readability for non-verified scale
5 g
OIML Class
III
Display
7” graphic colour
Protection class
IP 65 construction, IP 66/68 indicator
USB Interface
1× standard, 1× option
ETHERNET Interface
1× standard
EtherNet/IP Interface
1 × option (RJ45)
Profinet Interface
1 × option (RJ45)
RS232 Interface
1× standard, 1× option
RS485 Interface
1× option
IN/OUT Interface
4 IN 4 OUT standard, 12 IN 12 OUT option
Modbus RTU module
1× standard
Analog output module (option)
4-20mA, 0-10V
Power supply
100 – 240 V AC 50/60 Hz
Power consumption max.
25 W
Optional power supply
12-24V DC
Operating temperature
-10 ÷ +40 °C
Storage temperature
-10 ÷ +50 °C
Relative humidity
10% ÷ 80% RH no condensation
Indicator
PUE HX7
Keypad
membrane
Number of buttons
22
Construction
mild steel St3S
Weighing pan material
stainless steel AISI304
Weighing pan dimensions
400×500 mm
Packaging dimensions
620×720×430 mm
Net weight
14,8 kg
Gross weight
17,7 kg
Max number of platforms
2
HX7.300.C2 Multifunctional Scale
This image is for reference only.
HX7.300.C2 Multifunctional ScaleHX7.300.C2 Multifunctional Scale
close Exit
This image is for reference only.
HX7.300.C2 Multifunctional ScaleHX7.300.C2 Multifunctional Scale
Availability:
In stock
Estimated shipping date :
5 working days
Price:
Individual pricing
Select
a variant:
HX7.300.C2 Multifunctional Scalekeyboard_arrow_down
  • HX7.1,5.F1 Multifunctional Scale
    Max: 1.5kg | d: 0,5g
  • HX7.3.F1 Multifunctional Scale
    Max: 3kg | d: 1g
  • HX7.6.F1 Multifunctional Scale
    Max: 6kg | d: 2g
  • HX7.15.F1 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.30.F1 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.30.C2 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.15.C2 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.60.C2 Multifunctional Scale
    Max: 60kg | d: 20g
  • HX7.150.C2 Multifunctional Scale
    Max: 150kg | d: 50g
  • HX7.300.C2 Multifunctional Scale
    Max: 300kg | d: 100g
  • HX7.15.C3 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.30.C3 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.60.C3 Multifunctional Scale
    Max: 60kg | d: 20g
  • HX7.150.C3 Multifunctional Scale
    Max: 150kg | d: 50g
  • HX7.300.C3 Multifunctional Scale
    Max: 300kg | d: 100g
Options:
Selectkeyboard_arrow_down
  • None
  • Class III Verification
Selectkeyboard_arrow_down
  • None
  • Dual Weighing Range
emailAsk about the product
Rating:
star star star star star
Code:
WP-121-0010

Overview




{{model}}


Design of the HX7 C scale has been based on the latest solutions and an advanced computing platform.





HX7 C

he scale comprises PUE HX7 terminal made of AISI 304 stainless steel ensuring high ingress protection, i.e. IP66 / IP68, and 1-load-cell powder-coated platform.

At the front of the terminal there is a 7” colour graphic display. Characteristics such as the simplicity of operation, a clear menu and an intuitive information layout guarantee comfort of use. The top part of the operation panel features a bar graph consisting of 9 red and green diode fields.

The bar graph is a graphic visualisation informing the user on a current net weight of a product presented with reference to the scale range or declared min and max thresholds.







Interfaces

At the back of the housing there are hermetic connectors of RS232, RS485,
USB and Ethernet communication interfaces, plus digital inputs/outputs and analogue output. This enables cooperation with external devices such as barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

With use of the bracket you can either place the terminal at any flat horizontal surface, or fix it to the wall adjusting the tilt respectively to suit your needs.













Software

The terminal's software allows carrying out processes such as weighing, parts counting, dosing, labelling, formulations and percent weighing. Terminal’s system of information is based on numerous databases (users, products, weighings, packaging, formulations, customers) and ALIBI memory which guarantees stored data safety.














CE
CE
Verification
Verification
2 years warranty
2 years warranty

Datasheet

Maximum capacity [Max]
300 kg
Minimum load
2 kg
Readability [d]
100 g
Verification unit [e]
100 g
Tare range
-300 kg
Max readability for non-verified scale
10 g
OIML Class
III
Display
7” graphic colour
Protection class
IP 65 construction, IP 66/68 indicator
USB Interface
1× standard, 1× option
ETHERNET Interface
1× standard
EtherNet/IP Interface
1 × option (RJ45)
Profinet Interface
1 × option (RJ45)
RS232 Interface
1× standard, 1× option
RS485 Interface
1× option
IN/OUT Interface
4 IN 4 OUT standard, 12 IN 12 OUT option
Modbus RTU module
1× standard
Analog output module (option)
4-20mA, 0-10V
Power supply
100 – 240 V AC 50/60 Hz
Power consumption max.
25 W
Optional power supply
12-24V DC
Operating temperature
-10 ÷ +40 °C
Storage temperature
-10 ÷ +50 °C
Relative humidity
10% ÷ 80% RH no condensation
Indicator
PUE HX7
Keypad
membrane
Number of buttons
22
Construction
mild steel St3S
Weighing pan material
stainless steel AISI304
Weighing pan dimensions
400×500 mm
Packaging dimensions
620×720×430 mm
Net weight
14,8 kg
Gross weight
17,7 kg
Max number of platforms
2
HX7.15.C3 Multifunctional Scale
This image is for reference only.
HX7.15.C3 Multifunctional ScaleHX7.15.C3 Multifunctional Scale
close Exit
This image is for reference only.
HX7.15.C3 Multifunctional ScaleHX7.15.C3 Multifunctional Scale
Availability:
In stock
Estimated shipping date :
5 working days
Price:
Individual pricing
Select
a variant:
HX7.15.C3 Multifunctional Scalekeyboard_arrow_down
  • HX7.1,5.F1 Multifunctional Scale
    Max: 1.5kg | d: 0,5g
  • HX7.3.F1 Multifunctional Scale
    Max: 3kg | d: 1g
  • HX7.6.F1 Multifunctional Scale
    Max: 6kg | d: 2g
  • HX7.15.F1 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.30.F1 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.30.C2 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.15.C2 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.60.C2 Multifunctional Scale
    Max: 60kg | d: 20g
  • HX7.150.C2 Multifunctional Scale
    Max: 150kg | d: 50g
  • HX7.300.C2 Multifunctional Scale
    Max: 300kg | d: 100g
  • HX7.15.C3 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.30.C3 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.60.C3 Multifunctional Scale
    Max: 60kg | d: 20g
  • HX7.150.C3 Multifunctional Scale
    Max: 150kg | d: 50g
  • HX7.300.C3 Multifunctional Scale
    Max: 300kg | d: 100g
Options:
Selectkeyboard_arrow_down
  • None
  • Class III Verification
Selectkeyboard_arrow_down
  • None
  • Dual Weighing Range
emailAsk about the product
Rating:
star star star star star
Code:
WP-121-0011

Overview




{{model}}


Design of the HX7 C scale has been based on the latest solutions and an advanced computing platform.





HX7 C

he scale comprises PUE HX7 terminal made of AISI 304 stainless steel ensuring high ingress protection, i.e. IP66 / IP68, and 1-load-cell powder-coated platform.

At the front of the terminal there is a 7” colour graphic display. Characteristics such as the simplicity of operation, a clear menu and an intuitive information layout guarantee comfort of use. The top part of the operation panel features a bar graph consisting of 9 red and green diode fields.

The bar graph is a graphic visualisation informing the user on a current net weight of a product presented with reference to the scale range or declared min and max thresholds.







Interfaces

At the back of the housing there are hermetic connectors of RS232, RS485,
USB and Ethernet communication interfaces, plus digital inputs/outputs and analogue output. This enables cooperation with external devices such as barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

With use of the bracket you can either place the terminal at any flat horizontal surface, or fix it to the wall adjusting the tilt respectively to suit your needs.













Software

The terminal's software allows carrying out processes such as weighing, parts counting, dosing, labelling, formulations and percent weighing. Terminal’s system of information is based on numerous databases (users, products, weighings, packaging, formulations, customers) and ALIBI memory which guarantees stored data safety.














CE
CE
Verification
Verification
2 years warranty
2 years warranty

Datasheet

Maximum capacity [Max]
15 kg
Minimum load
100 g
Readability [d]
5 g
Verification unit [e]
5 g
Tare range
-15 kg
Max readability for non-verified scale
1 g
OIML Class
III
Display
7” graphic colour
Protection class
IP 65 construction, IP 66/68 indicator
USB Interface
1× standard, 1× option
ETHERNET Interface
1× standard
EtherNet/IP Interface
1 × option (RJ45)
Profinet Interface
1 × option (RJ45)
RS232 Interface
1× standard, 1× option
RS485 Interface
1× option
IN/OUT Interface
4 IN 4 OUT standard, 12 IN 12 OUT option
Modbus RTU module
1× standard
Analog output module (option)
4-20mA, 0-10V
Power supply
100 – 240 V AC 50/60 Hz
Power consumption max.
25 W
Optional power supply
12-24V DC
Operating temperature
-10 ÷ +40 °C
Storage temperature
-10 ÷ +50 °C
Relative humidity
10% ÷ 80% RH no condensation
Indicator
PUE HX7
Keypad
membrane
Number of buttons
22
Construction
mild steel St3S
Weighing pan material
stainless steel AISI304
Weighing pan dimensions
500×700 mm
Packaging dimensions
800×850×490 mm
Net weight
25,6 kg
Gross weight
30,2 kg
Max number of platforms
2
HX7.30.C3 Multifunctional Scale
This image is for reference only.
HX7.30.C3 Multifunctional ScaleHX7.30.C3 Multifunctional Scale
close Exit
This image is for reference only.
HX7.30.C3 Multifunctional ScaleHX7.30.C3 Multifunctional Scale
Availability:
In stock
Estimated shipping date :
5 working days
Price:
Individual pricing
Select
a variant:
HX7.30.C3 Multifunctional Scalekeyboard_arrow_down
  • HX7.1,5.F1 Multifunctional Scale
    Max: 1.5kg | d: 0,5g
  • HX7.3.F1 Multifunctional Scale
    Max: 3kg | d: 1g
  • HX7.6.F1 Multifunctional Scale
    Max: 6kg | d: 2g
  • HX7.15.F1 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.30.F1 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.30.C2 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.15.C2 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.60.C2 Multifunctional Scale
    Max: 60kg | d: 20g
  • HX7.150.C2 Multifunctional Scale
    Max: 150kg | d: 50g
  • HX7.300.C2 Multifunctional Scale
    Max: 300kg | d: 100g
  • HX7.15.C3 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.30.C3 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.60.C3 Multifunctional Scale
    Max: 60kg | d: 20g
  • HX7.150.C3 Multifunctional Scale
    Max: 150kg | d: 50g
  • HX7.300.C3 Multifunctional Scale
    Max: 300kg | d: 100g
Options:
Selectkeyboard_arrow_down
  • None
  • Class III Verification
Selectkeyboard_arrow_down
  • None
  • Dual Weighing Range
emailAsk about the product
Rating:
star star star star star
Code:
WP-121-0012

Overview




{{model}}


Design of the HX7 C scale has been based on the latest solutions and an advanced computing platform.





HX7 C

he scale comprises PUE HX7 terminal made of AISI 304 stainless steel ensuring high ingress protection, i.e. IP66 / IP68, and 1-load-cell powder-coated platform.

At the front of the terminal there is a 7” colour graphic display. Characteristics such as the simplicity of operation, a clear menu and an intuitive information layout guarantee comfort of use. The top part of the operation panel features a bar graph consisting of 9 red and green diode fields.

The bar graph is a graphic visualisation informing the user on a current net weight of a product presented with reference to the scale range or declared min and max thresholds.







Interfaces

At the back of the housing there are hermetic connectors of RS232, RS485,
USB and Ethernet communication interfaces, plus digital inputs/outputs and analogue output. This enables cooperation with external devices such as barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

With use of the bracket you can either place the terminal at any flat horizontal surface, or fix it to the wall adjusting the tilt respectively to suit your needs.













Software

The terminal's software allows carrying out processes such as weighing, parts counting, dosing, labelling, formulations and percent weighing. Terminal’s system of information is based on numerous databases (users, products, weighings, packaging, formulations, customers) and ALIBI memory which guarantees stored data safety.














CE
CE
Verification
Verification
2 years warranty
2 years warranty

Datasheet

Maximum capacity [Max]
30 kg
Minimum load
200 g
Readability [d]
10 g
Verification unit [e]
10 g
Tare range
-30 kg
Max readability for non-verified scale
1 g
OIML Class
III
Display
7” graphic colour
Protection class
IP 65 construction, IP 66/68 indicator
USB Interface
1× standard, 1× option
ETHERNET Interface
1× standard
EtherNet/IP Interface
1 × option (RJ45)
Profinet Interface
1 × option (RJ45)
RS232 Interface
1× standard, 1× option
RS485 Interface
1× option
IN/OUT Interface
4 IN 4 OUT standard, 12 IN 12 OUT option
Modbus RTU module
1× standard
Analog output module (option)
4-20mA, 0-10V
Power supply
100 – 240 V AC 50/60 Hz
Power consumption max.
25 W
Optional power supply
12-24V DC
Operating temperature
-10 ÷ +40 °C
Storage temperature
-10 ÷ +50 °C
Relative humidity
10% ÷ 80% RH no condensation
Indicator
PUE HX7
Keypad
membrane
Number of buttons
22
Construction
mild steel St3S
Weighing pan material
stainless steel AISI304
Weighing pan dimensions
500×700 mm
Packaging dimensions
800×850×490 mm
Net weight
25,6 kg
Gross weight
30,2 kg
Max number of platforms
2
HX7.60.C3 Multifunctional Scale
This image is for reference only.
HX7.60.C3 Multifunctional ScaleHX7.60.C3 Multifunctional Scale
close Exit
This image is for reference only.
HX7.60.C3 Multifunctional ScaleHX7.60.C3 Multifunctional Scale
Availability:
In stock
Estimated shipping date :
5 working days
Price:
Individual pricing
Select
a variant:
HX7.60.C3 Multifunctional Scalekeyboard_arrow_down
  • HX7.1,5.F1 Multifunctional Scale
    Max: 1.5kg | d: 0,5g
  • HX7.3.F1 Multifunctional Scale
    Max: 3kg | d: 1g
  • HX7.6.F1 Multifunctional Scale
    Max: 6kg | d: 2g
  • HX7.15.F1 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.30.F1 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.30.C2 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.15.C2 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.60.C2 Multifunctional Scale
    Max: 60kg | d: 20g
  • HX7.150.C2 Multifunctional Scale
    Max: 150kg | d: 50g
  • HX7.300.C2 Multifunctional Scale
    Max: 300kg | d: 100g
  • HX7.15.C3 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.30.C3 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.60.C3 Multifunctional Scale
    Max: 60kg | d: 20g
  • HX7.150.C3 Multifunctional Scale
    Max: 150kg | d: 50g
  • HX7.300.C3 Multifunctional Scale
    Max: 300kg | d: 100g
Options:
Selectkeyboard_arrow_down
  • None
  • Class III Verification
Selectkeyboard_arrow_down
  • None
  • Dual Weighing Range
emailAsk about the product
Rating:
star star star star star
Code:
WP-121-0013

Overview




{{model}}


Design of the HX7 C scale has been based on the latest solutions and an advanced computing platform.





HX7 C

he scale comprises PUE HX7 terminal made of AISI 304 stainless steel ensuring high ingress protection, i.e. IP66 / IP68, and 1-load-cell powder-coated platform.

At the front of the terminal there is a 7” colour graphic display. Characteristics such as the simplicity of operation, a clear menu and an intuitive information layout guarantee comfort of use. The top part of the operation panel features a bar graph consisting of 9 red and green diode fields.

The bar graph is a graphic visualisation informing the user on a current net weight of a product presented with reference to the scale range or declared min and max thresholds.







Interfaces

At the back of the housing there are hermetic connectors of RS232, RS485,
USB and Ethernet communication interfaces, plus digital inputs/outputs and analogue output. This enables cooperation with external devices such as barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

With use of the bracket you can either place the terminal at any flat horizontal surface, or fix it to the wall adjusting the tilt respectively to suit your needs.













Software

The terminal's software allows carrying out processes such as weighing, parts counting, dosing, labelling, formulations and percent weighing. Terminal’s system of information is based on numerous databases (users, products, weighings, packaging, formulations, customers) and ALIBI memory which guarantees stored data safety.














CE
CE
Verification
Verification
2 years warranty
2 years warranty

Datasheet

Maximum capacity [Max]
60 kg
Minimum load
400 g
Readability [d]
20 g
Verification unit [e]
20 g
Tare range
-60 kg
Max readability for non-verified scale
2 g
OIML Class
III
Display
7” graphic colour
Protection class
IP 65 construction, IP 66/68 indicator
USB Interface
1× standard, 1× option
ETHERNET Interface
1× standard
EtherNet/IP Interface
1 × option (RJ45)
Profinet Interface
1 × option (RJ45)
RS232 Interface
1× standard, 1× option
RS485 Interface
1× option
IN/OUT Interface
4 IN 4 OUT standard, 12 IN 12 OUT option
Modbus RTU module
1× standard
Analog output module (option)
4-20mA, 0-10V
Power supply
100 – 240 V AC 50/60 Hz
Power consumption max.
25 W
Optional power supply
12-24V DC
Operating temperature
-10 ÷ +40 °C
Storage temperature
-10 ÷ +50 °C
Relative humidity
10% ÷ 80% RH no condensation
Indicator
PUE HX7
Keypad
membrane
Number of buttons
22
Construction
mild steel St3S
Weighing pan material
stainless steel AISI304
Weighing pan dimensions
500×700 mm
Packaging dimensions
800×850×490 mm
Net weight
25,6 kg
Gross weight
30,2 kg
Max number of platforms
2
HX7.150.C3 Multifunctional Scale
This image is for reference only.
HX7.150.C3 Multifunctional ScaleHX7.150.C3 Multifunctional Scale
close Exit
This image is for reference only.
HX7.150.C3 Multifunctional ScaleHX7.150.C3 Multifunctional Scale
Availability:
In stock
Estimated shipping date :
5 working days
Price:
Individual pricing
Select
a variant:
HX7.150.C3 Multifunctional Scalekeyboard_arrow_down
  • HX7.1,5.F1 Multifunctional Scale
    Max: 1.5kg | d: 0,5g
  • HX7.3.F1 Multifunctional Scale
    Max: 3kg | d: 1g
  • HX7.6.F1 Multifunctional Scale
    Max: 6kg | d: 2g
  • HX7.15.F1 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.30.F1 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.30.C2 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.15.C2 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.60.C2 Multifunctional Scale
    Max: 60kg | d: 20g
  • HX7.150.C2 Multifunctional Scale
    Max: 150kg | d: 50g
  • HX7.300.C2 Multifunctional Scale
    Max: 300kg | d: 100g
  • HX7.15.C3 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.30.C3 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.60.C3 Multifunctional Scale
    Max: 60kg | d: 20g
  • HX7.150.C3 Multifunctional Scale
    Max: 150kg | d: 50g
  • HX7.300.C3 Multifunctional Scale
    Max: 300kg | d: 100g
Options:
Selectkeyboard_arrow_down
  • None
  • Class III Verification
Selectkeyboard_arrow_down
  • None
  • Dual Weighing Range
emailAsk about the product
Rating:
star star star star star
Code:
WP-121-0014

Overview




{{model}}


Design of the HX7 C scale has been based on the latest solutions and an advanced computing platform.





HX7 C

he scale comprises PUE HX7 terminal made of AISI 304 stainless steel ensuring high ingress protection, i.e. IP66 / IP68, and 1-load-cell powder-coated platform.

At the front of the terminal there is a 7” colour graphic display. Characteristics such as the simplicity of operation, a clear menu and an intuitive information layout guarantee comfort of use. The top part of the operation panel features a bar graph consisting of 9 red and green diode fields.

The bar graph is a graphic visualisation informing the user on a current net weight of a product presented with reference to the scale range or declared min and max thresholds.







Interfaces

At the back of the housing there are hermetic connectors of RS232, RS485,
USB and Ethernet communication interfaces, plus digital inputs/outputs and analogue output. This enables cooperation with external devices such as barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

With use of the bracket you can either place the terminal at any flat horizontal surface, or fix it to the wall adjusting the tilt respectively to suit your needs.













Software

The terminal's software allows carrying out processes such as weighing, parts counting, dosing, labelling, formulations and percent weighing. Terminal’s system of information is based on numerous databases (users, products, weighings, packaging, formulations, customers) and ALIBI memory which guarantees stored data safety.














CE
CE
Verification
Verification
2 years warranty
2 years warranty

Datasheet

Maximum capacity [Max]
150 kg
Minimum load
1 kg
Readability [d]
50 g
Verification unit [e]
50 g
Tare range
-150 kg
Max readability for non-verified scale
5 g
OIML Class
III
Display
7” graphic colour
Protection class
IP 65 construction, IP 66/68 indicator
USB Interface
1× standard, 1× option
ETHERNET Interface
1× standard
EtherNet/IP Interface
1 × option (RJ45)
Profinet Interface
1 × option (RJ45)
RS232 Interface
1× standard, 1× option
RS485 Interface
1× option
IN/OUT Interface
4 IN 4 OUT standard, 12 IN 12 OUT option
Modbus RTU module
1× standard
Analog output module (option)
4-20mA, 0-10V
Power supply
100 – 240 V AC 50/60 Hz
Power consumption max.
25 W
Optional power supply
12-24V DC
Operating temperature
-10 ÷ +40 °C
Storage temperature
-10 ÷ +50 °C
Relative humidity
10% ÷ 80% RH no condensation
Indicator
PUE HX7
Keypad
membrane
Number of buttons
22
Construction
mild steel St3S
Weighing pan material
stainless steel AISI304
Weighing pan dimensions
500×700 mm
Packaging dimensions
800×850×490 mm
Net weight
25,6 kg
Gross weight
30,2 kg
Max number of platforms
2
HX7.300.C3 Multifunctional Scale
This image is for reference only.
HX7.300.C3 Multifunctional ScaleHX7.300.C3 Multifunctional Scale
close Exit
This image is for reference only.
HX7.300.C3 Multifunctional ScaleHX7.300.C3 Multifunctional Scale
Availability:
In stock
Estimated shipping date :
5 working days
Price:
Individual pricing
Select
a variant:
HX7.300.C3 Multifunctional Scalekeyboard_arrow_down
  • HX7.1,5.F1 Multifunctional Scale
    Max: 1.5kg | d: 0,5g
  • HX7.3.F1 Multifunctional Scale
    Max: 3kg | d: 1g
  • HX7.6.F1 Multifunctional Scale
    Max: 6kg | d: 2g
  • HX7.15.F1 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.30.F1 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.30.C2 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.15.C2 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.60.C2 Multifunctional Scale
    Max: 60kg | d: 20g
  • HX7.150.C2 Multifunctional Scale
    Max: 150kg | d: 50g
  • HX7.300.C2 Multifunctional Scale
    Max: 300kg | d: 100g
  • HX7.15.C3 Multifunctional Scale
    Max: 15kg | d: 5g
  • HX7.30.C3 Multifunctional Scale
    Max: 30kg | d: 10g
  • HX7.60.C3 Multifunctional Scale
    Max: 60kg | d: 20g
  • HX7.150.C3 Multifunctional Scale
    Max: 150kg | d: 50g
  • HX7.300.C3 Multifunctional Scale
    Max: 300kg | d: 100g
Options:
Selectkeyboard_arrow_down
  • None
  • Class III Verification
Selectkeyboard_arrow_down
  • None
  • Dual Weighing Range
emailAsk about the product
Rating:
star star star star star
Code:
WP-121-0015

Overview




{{model}}


Design of the HX7 C scale has been based on the latest solutions and an advanced computing platform.





HX7 C

he scale comprises PUE HX7 terminal made of AISI 304 stainless steel ensuring high ingress protection, i.e. IP66 / IP68, and 1-load-cell powder-coated platform.

At the front of the terminal there is a 7” colour graphic display. Characteristics such as the simplicity of operation, a clear menu and an intuitive information layout guarantee comfort of use. The top part of the operation panel features a bar graph consisting of 9 red and green diode fields.

The bar graph is a graphic visualisation informing the user on a current net weight of a product presented with reference to the scale range or declared min and max thresholds.







Interfaces

At the back of the housing there are hermetic connectors of RS232, RS485,
USB and Ethernet communication interfaces, plus digital inputs/outputs and analogue output. This enables cooperation with external devices such as barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

With use of the bracket you can either place the terminal at any flat horizontal surface, or fix it to the wall adjusting the tilt respectively to suit your needs.













Software

The terminal's software allows carrying out processes such as weighing, parts counting, dosing, labelling, formulations and percent weighing. Terminal’s system of information is based on numerous databases (users, products, weighings, packaging, formulations, customers) and ALIBI memory which guarantees stored data safety.














CE
CE
Verification
Verification
2 years warranty
2 years warranty

Datasheet

Maximum capacity [Max]
300 kg
Minimum load
2 kg
Readability [d]
100 g
Verification unit [e]
100 g
Tare range
-300 kg
Max readability for non-verified scale
10 g
OIML Class
III
Display
7” graphic colour
Protection class
IP 65 construction, IP 66/68 indicator
USB Interface
1× standard, 1× option
ETHERNET Interface
1× standard
EtherNet/IP Interface
1 × option (RJ45)
Profinet Interface
1 × option (RJ45)
RS232 Interface
1× standard, 1× option
RS485 Interface
1× option
IN/OUT Interface
4 IN 4 OUT standard, 12 IN 12 OUT option
Modbus RTU module
1× standard
Analog output module (option)
4-20mA, 0-10V
Power supply
100 – 240 V AC 50/60 Hz
Power consumption max.
25 W
Optional power supply
12-24V DC
Operating temperature
-10 ÷ +40 °C
Storage temperature
-10 ÷ +50 °C
Relative humidity
10% ÷ 80% RH no condensation
Indicator
PUE HX7
Keypad
membrane
Number of buttons
22
Construction
mild steel St3S
Weighing pan material
stainless steel AISI304
Weighing pan dimensions
500×700 mm
Packaging dimensions
800×850×490 mm
Net weight
25,6 kg
Gross weight
30,2 kg
Max number of platforms
2
