THB-R PC software is designed to monitor and register indoor ambient conditions, wherein the said monitoring is based on data collected by measuring devices of Radwag production.
Two THB software versions are offered:

THB-R-Single – intended for integration with THB-3/2 ambient conditions module,
THB-R-Multi – intended for integration with THB-R ambient conditions recorder.

Overview

THB-R PC software is responsible for establishing communication with measuring devices. It operates as a user interface intended for collected data presentation, archiving, reporting and for carrying out measuring devices setup.
The software carries out constant readout of air temperature, relative air humidity, atmospheric pressure and vibrations. Additionally it calculates air density. Current metrological parameters values are demonstrated in a form of a time diagram, wherein the last 5 minutes are presented.

The measurements may also be archived in a local database, MS Access format. The record takes place in a specified time interval. Database files are formed using one of four user-defined methods: daily, weekly, monthly, combination of all. THB-R-Multi version of the PC software enables record of measurements collected by THB-R Ambient Conditions Recorder.

The stored data may be previewed and printed in a form of reports and diagrams. THB-R installation package comprises THB-Network Viewer allowing local network users to preview current indications of measuring units.

Cooperation with measuring devices

The software cooperates with measuring devices such as ambient conditions modules of RADWAG production. The modules are intended for operation with THB-R-Single or THB-R-Multi software version. Depending on the used device, communication between the software and the device may be established via RS 232 or USB interface.

The latest software versions:

THB-R-Single: v. 4.0.2
THB-R-Multi: v. 5.2.0.3

Datasheet

Operating system

Windows 7, 8, 10

This image is for reference only.

close Exit

This image is for reference only.

Availability:

In stock

Estimated shipping date :

5 working days

Price:

Individual pricing

Select
a variant:

THB W Sensorkeyboard_arrow_down

THB-R
THB W Sensor
THBR Box Ambient Conditions Recorder
THB S Sensor
THB P Sensor
RPanel BOX

emailAsk about the product

Rating:

star star star star star

Code:

WX-016-0162

Overview

THB W Sensor

THB W sensor is intended to measure temperature of liquid.

THB W

Temperature readout using THB W sensor is possible upon connecting the sensor directly to a computer or to the THBR Box ambient conditions recorder.

THB W can be used e.g. on pipettes calibration workstation, to measure water temperature in gravimetric method, which is done in order to determine 'Z' coefficient in accordance with ISO 8655.

Each sensor has its own identification number that is assigned to measurements saved to the database.

Ambient conditions can be monitored using:

weighing instrument display
website
Windows OS application: THB Single or THB Multi
Android application.

Datasheet

Measured temperature range

+5 – +45 °C

Temperature readability [d]

0,01 °C

Temperature measurement accuracy

±0,1

Communication interface

USB 2.0

Verification

YES

Sensor unit dimensions

ø8×156 mm

Temperature readability

0,01 °C

This image is for reference only.

close Exit

This image is for reference only.

Availability:

In stock

Estimated shipping date :

5 working days

Price:

Individual pricing

Select
a variant:

THBR Box Ambient Conditions Recorderkeyboard_arrow_down

THB-R
THB W Sensor
THBR Box Ambient Conditions Recorder
THB S Sensor
THB P Sensor
RPanel BOX

emailAsk about the product

Rating:

star star star star star

Code:

WX-016-0163

Overview

THBR Box Ambient Conditions Recorder

THBR BOX is an autonomous measuring device operating in a local computer network. THBR Box enables collecting ambient conditions measurements, storing the database, sending customized warnings and alerts and generating website for accessing measurements and settings.

THBR Box

There are three models of the recorder:

with an integral screen,
with a separate screen,
without a screen.

Communication with THBR BOX can be established wireless or via Ethernet. The module enables direct connection with up to 4 sensors. With use of USB hub it is possible to connect greater number of sensors. Each sensor has its own identification number that is assigned to measurements saved to the database.

THBR Box features the following connectors: 4xUSB, HDMI, Ethernet. The device is powered using external micro USB 5V 2A power supply.

Data stored by the THBR Box can be presented via THBR Multi software, website or Android application.

This image is for reference only.

close Exit

This image is for reference only.

Availability:

In stock

Estimated shipping date :

5 working days

Price:

Individual pricing

Select
a variant:

THB S Sensorkeyboard_arrow_down

THB-R
THB W Sensor
THBR Box Ambient Conditions Recorder
THB S Sensor
THB P Sensor
RPanel BOX

emailAsk about the product

Rating:

star star star star star

Code:

WX-016-0160

Overview

THB S Sensor

THB sensor

THB sensor is a device measuring ambient conditions, it cooperates with:

a computer (1 sensor via USB 2.0 port); direct cooperation,
a weighing device (1 sensor via USB 2.0 port); direct cooperation,
a THBR Box (up to 4 sensors connected to THBR Box via USB 2.0 port).

The THB sensor is designed to measure parameters such as temperature, humidity, pressure, air density and vibrations level. Sensor registers level of permissible vibrations at the workstation, wherein the values of vibrations level are displayed within 0 - 100% range versus reference values in laboratory conditions. Values exceeding 100% threshold inform about potential occurrence of error greater than permissible error of mass measurement performed using weighing device.

Each sensor has its own identification number that is assigned to measurements saved to the database.

Ambient conditions can be monitored using:

weighing instrument display
website
Windows OS application: THB Single or THB Multi
Android application.

On the basis of sent measurements, the THB Single or THB Multi software determines air temperature, humidity, pressure, density and permissible vibrations factor.

Datasheet

Measured temperature range

+5 – +45 °C

Temperature readability [d]

0,01 °C

Temperature measurement accuracy

+/- 0,1 °C

Measured pressure range

850 -1050 hPa

Pressure readability [d]

0,1 hPa

Pressure measurement accuracy

1 hPa

Measured humidity range

0-100 %

Operating temperature

+5 – +45 °C

Humidity readability [d]

0,1 %

Humidity measurement accuracy

+/- 1,8 %

Communication interface

USB 2.0

Vibrations detection

YES

Air density determination

YES

Verification

YES

This image is for reference only.

close Exit

This image is for reference only.

Availability:

In stock

Estimated shipping date :

5 working days

Price:

Individual pricing

Select
a variant:

THB P Sensorkeyboard_arrow_down

THB-R
THB W Sensor
THBR Box Ambient Conditions Recorder
THB S Sensor
THB P Sensor
RPanel BOX

emailAsk about the product

Rating:

star star star star star

Code:

WX-016-0161

Overview

THB P Sensor

THB sensor

THB sensor is a device measuring ambient conditions, it cooperates with:

a computer (1 sensor via USB 2.0 port); direct cooperation,
a weighing device (1 sensor via USB 2.0 port); direct cooperation,
a THBR Box (up to 4 sensors connected to THBR Box via USB 2.0 port).

Each sensor has its own identification number that is assigned to measurements saved to the database.

Ambient conditions can be monitored using:

weighing instrument display
website
Windows OS application: THB Single or THB Multi
Android application.

On the basis of sent measurements, the THB Single or THB Multi software determines air temperature, humidity, pressure, density and permissible vibrations factor.

Datasheet

Measured temperature range

+5 – +45 °C

Temperature readability [d]

0,001 °C

Temperature measurement accuracy

+/- 0,1 °C

Measured pressure range

850 -1050 hPa

Pressure readability [d]

0,001 hPa

Pressure measurement accuracy

1 hPa

Measured humidity range

0-100 %

Operating temperature

+5 – +45 °C

Humidity readability [d]

0,01 %

Humidity measurement accuracy

+/- 1,8 %

Communication interface

USB 2.0

Vibrations detection

YES

Air density determination

YES

Verification

YES

This image is for reference only.

close Exit

This image is for reference only.

Availability:

In stock

Estimated shipping date :

5 working days

Price:

Individual pricing

Select
a variant:

RPanel BOXkeyboard_arrow_down

THB-R
THB W Sensor
THBR Box Ambient Conditions Recorder
THB S Sensor
THB P Sensor
RPanel BOX

emailAsk about the product

Rating:

star star star star star

Code:

WX-015-0216

Overview

RPanel BOX

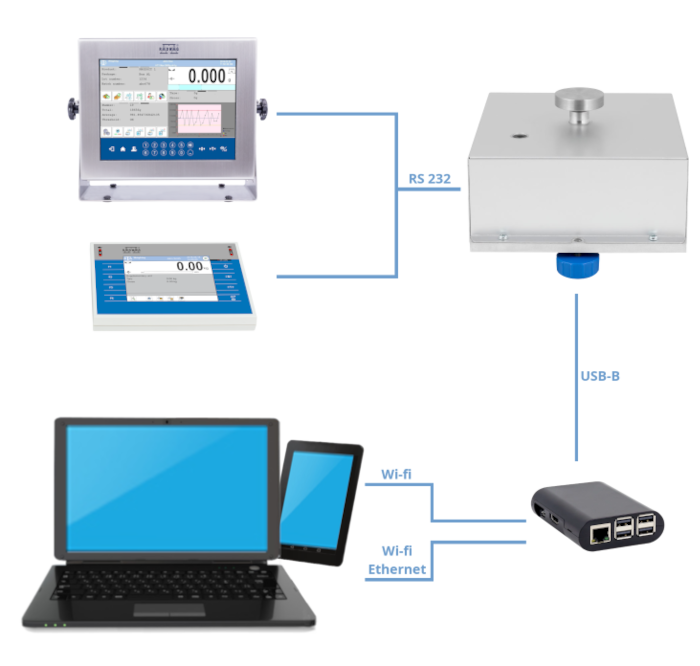

RPanel Box is an innovative device designed to support electromagnetic MAS R, MPS R weighing modules and R series weighing instruments in Wi-Fi® and Ethernet networks.

RPanel BOX

makes all operation panel’s keys and functions, e.g. taring, zeroing and parameter settings, accessible to a LAN user via a browser or Android app.

It can connect directly to up to four balances or scales. The device can also be connected to a monitor via HDMI, where the network application is displayed. Balance operation is also enabled through a dedicated Android app.

An innovative algorithm for automatic search of electromagnetic weighing modules greatly simplifies connection of weighing devices to the box. In practice, the only parameter required for connection is the weighing device’s communication port.

Functions:

Automatic detection of and connection to electromagnetic weighing modules;
Connection to weighing devices via COM or USB port
Simultaneous connection to up to four weighing devices (R series balances and MAS and MPS modules)
Communication with the network and Android application via Ethernet port and Wi-Fi
Operation of MAS 200.R module panel
Operation of MPS 6000.R module panel
Compatibility with almost all popular browsers
