WAY 5Y.KO Manual Mass Comparator

WAY 100.5Y.KO Mass Comparator
This image is for reference only.
WAY 100.5Y.KO Mass ComparatorWAY 100.5Y.KO Mass ComparatorWAY 100.5Y.KO Mass Comparator
close Exit
This image is for reference only.
WAY 100.5Y.KO Mass ComparatorWAY 100.5Y.KO Mass ComparatorWAY 100.5Y.KO Mass Comparator
Availability:
Estimated shipping date :
Price:
Individual pricing
Select
a variant:
WAY 100.5Y.KO Mass Comparatorkeyboard_arrow_down
  • WAY 100.5Y.KO Mass Comparator
    Max: 110g | d: 0,001mg
  • WAY 500.5Y.KO Mass Comparator
    Max: 520g | d: 0,01mg
  • WAY 1.5Y.KO Mass Comparator
    Max: 1.02kg | d: 0,01mg
  • WAY 2.5Y.KO Mass Comparator
    Max: 2.3kg | d: 0,1mg
  • WAY 5.5Y.KO Mass Comparator
    Max: 5.05kg | d: 0,1mg
  • WAY 200.5Y.KO Mass Comparator
    Max: 210g | d: 0,001mg
  • WAY 1200.5Y.KO Mass Comparator
    Max: 1200g | d: 0,1mg
  • WAY 5100.5Y.KO Mass Comparator
    Max: 5100g | d: 1mg
emailAsk about the product
Rating:
star star star star star
Code:
WL-406-0039

Overview


The newest line of Radwag Mass Comparators enables adjusting mass standards and weights according to the OIML recommendations (R-111) from 1 mg to 5 kg for E1 class and lower.

Mass comparators are used both for ensuring traceability of mass measurements, and verification of weights in accordance with the principles of legal metrology. RADWAG Mass Comparators have gained recognition among Accredited Calibration Laboratories in many countries.

Mass comparator WAY 5Y.KO series similarly to other models, comprises two components. One of them holds the electronic module, and the other precise mechanical measuring system.
The WAY 5Y.KO series comes standard with an aesthetic, large weighing chamber with glass anti-draft shield. All elements of the weighing chamber are manufactured from glass or metal to minimize the influence of electrostatic charges on weighing result. Mass comparator WAY 5Y.KO series features an intuitive menu supporting a user while operating the instrument.

2 years warranty
2 years warranty
CE
CE

Datasheet

E1
5 g ÷ 100 g
E2
100 mg ÷ 100 g
F1
1 mg ÷ 100 g
F2
1 mg ÷ 100 g
M1
1 mg ÷ 100 g
M2
1 mg ÷ 100 g
Maximum capacity [Max]
110 g
Readability [d]
0,001 mg
Standard repeatability [5% Max]
2,5 µg
Standard repeatability [Max]
3 µg
Permissible repeatability
5 µg
Eccentricity (tested load)
0 mg*
Electric compensation range
-1 g ÷ +10 g
Stabilization time
30 s
Adjustment
external
Display
10″ touchscreen
Supplementary weights internal
half automatic
Supplementary weights external
10 g
Communication interface
USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot
Operating temperature
+15 ÷ +30 °C
Operating temperature change rate
±0,5°C/12h (±0,3°C/4h)
Relative humidity
40% ÷ 60%
Relative humidity change rate
± 3 % / 4 h
Weighing pan dimensions
ø30 mm

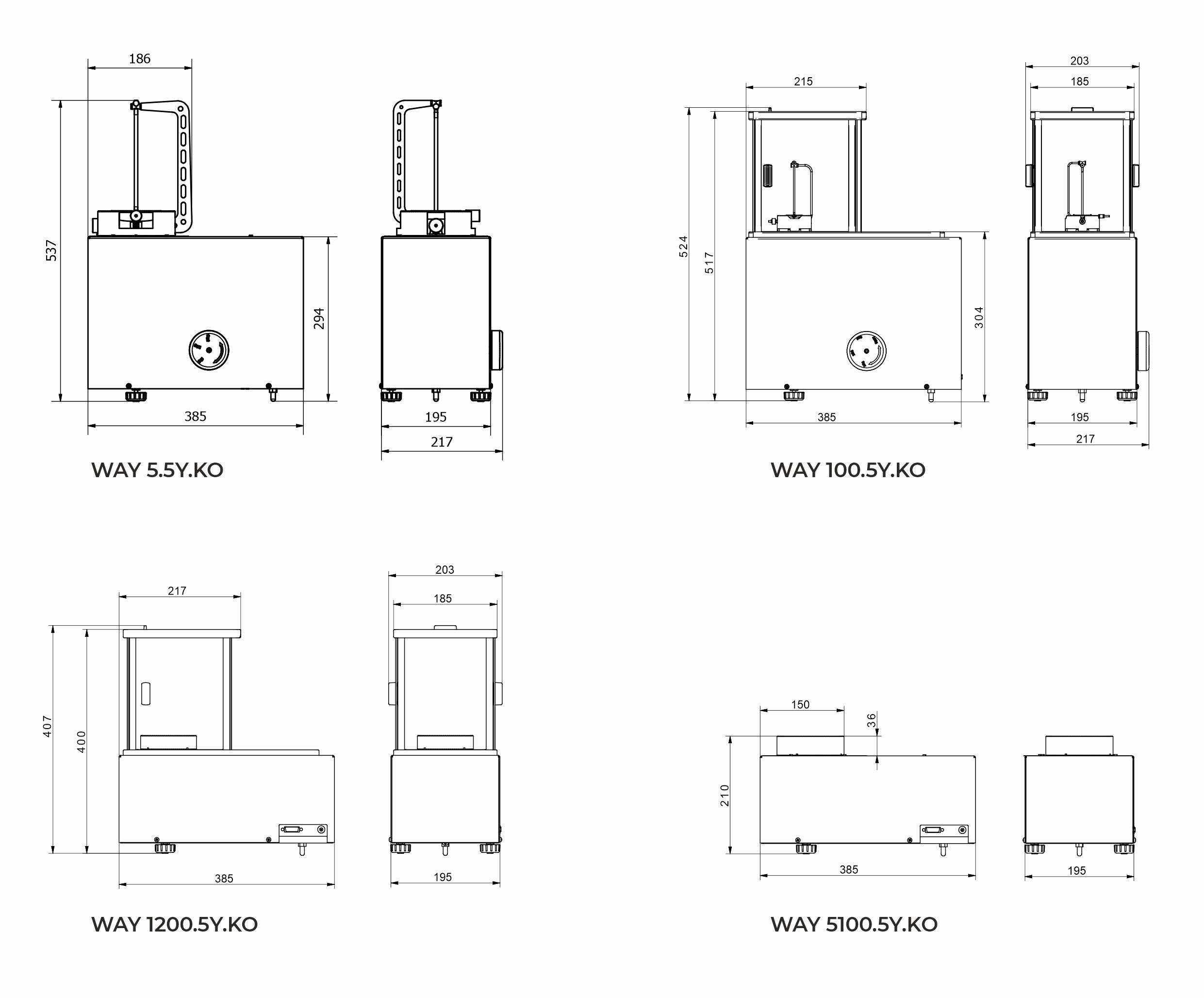

Weighing device dimensions
385×217×524 mm
Controling device dimensions
249×170×72 mm
Anti-draft chamber dimensions
560×340×570 mm
Packaging dimensions
945×820×1260 mm
Chamber packaging size
820×850×630 mm
Net weight
36,5 kg
Gross weight
56,5 kg
WAY 500.5Y.KO Mass Comparator
This image is for reference only.
WAY 500.5Y.KO Mass ComparatorWAY 500.5Y.KO Mass ComparatorWAY 500.5Y.KO Mass Comparator
close Exit
This image is for reference only.
WAY 500.5Y.KO Mass ComparatorWAY 500.5Y.KO Mass ComparatorWAY 500.5Y.KO Mass Comparator
Availability:
Estimated shipping date :
Price:
Individual pricing
Select
a variant:
WAY 500.5Y.KO Mass Comparatorkeyboard_arrow_down
  • WAY 100.5Y.KO Mass Comparator
    Max: 110g | d: 0,001mg
  • WAY 500.5Y.KO Mass Comparator
    Max: 520g | d: 0,01mg
  • WAY 1.5Y.KO Mass Comparator
    Max: 1.02kg | d: 0,01mg
  • WAY 2.5Y.KO Mass Comparator
    Max: 2.3kg | d: 0,1mg
  • WAY 5.5Y.KO Mass Comparator
    Max: 5.05kg | d: 0,1mg
  • WAY 200.5Y.KO Mass Comparator
    Max: 210g | d: 0,001mg
  • WAY 1200.5Y.KO Mass Comparator
    Max: 1200g | d: 0,1mg
  • WAY 5100.5Y.KO Mass Comparator
    Max: 5100g | d: 1mg
emailAsk about the product
Rating:
star star star star star
Code:
WL-406-0041

Overview


The newest line of Radwag Mass Comparators enables adjusting mass standards and weights according to the OIML recommendations (R-111) from 1 mg to 5 kg for E1 class and lower.

Mass comparators are used both for ensuring traceability of mass measurements, and verification of weights in accordance with the principles of legal metrology. RADWAG Mass Comparators have gained recognition among Accredited Calibration Laboratories in many countries.

Mass comparator WAY 5Y.KO series similarly to other models, comprises two components. One of them holds the electronic module, and the other precise mechanical measuring system.
The WAY 5Y.KO series comes standard with an aesthetic, large weighing chamber with glass anti-draft shield. All elements of the weighing chamber are manufactured from glass or metal to minimize the influence of electrostatic charges on weighing result. Mass comparator WAY 5Y.KO series features an intuitive menu supporting a user while operating the instrument.

2 years warranty
2 years warranty
CE
CE

Datasheet

E1
200 g ÷ 500 g
E2
10 g ÷ 500 g
F1
500 mg ÷ 500 g
F2
1 mg ÷ 500 g
M1
1 mg ÷ 500 g
M2
1 mg ÷ 500 g
Maximum capacity [Max]
520 g
Readability [d]
0,01 mg
Standard repeatability [5% Max]
0,012 mg
Standard repeatability [Max]
0,02 mg
Permissible repeatability
0,035 mg
Eccentricity (tested load)
1d / 1 mm
Electric compensation range
-10 g ÷ +20 g
Stabilization time
30 s
Adjustment
external
Display
10″ touchscreen
Supplementary weights internal
half automatic
Supplementary weights external
30 g, 2× 10 g
Communication interface
USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot
Operating temperature
+15 ÷ +30 °C
Operating temperature change rate
±0,5°C/12h (±0,3°C/4h)
Relative humidity
40% ÷ 60%
Relative humidity change rate
± 3 % / 4 h
Weighing pan dimensions
ø50 mm
Weighing device dimensions
385×215×525 mm
Controling device dimensions
249×170×72 mm
Anti-draft chamber dimensions
560×300×665 mm
Packaging dimensions
945×820×1260 mm
Chamber packaging size
820×850×630 mm
Net weight
37,5 kg
Gross weight
57,5 kg
WAY 1.5Y.KO Mass Comparator
This image is for reference only.
WAY 1.5Y.KO Mass ComparatorWAY 1.5Y.KO Mass ComparatorWAY 1.5Y.KO Mass Comparator
close Exit
This image is for reference only.
WAY 1.5Y.KO Mass ComparatorWAY 1.5Y.KO Mass ComparatorWAY 1.5Y.KO Mass Comparator
Availability:
Estimated shipping date :
Price:
Individual pricing
Select
a variant:
WAY 1.5Y.KO Mass Comparatorkeyboard_arrow_down
  • WAY 100.5Y.KO Mass Comparator
    Max: 110g | d: 0,001mg
  • WAY 500.5Y.KO Mass Comparator
    Max: 520g | d: 0,01mg
  • WAY 1.5Y.KO Mass Comparator
    Max: 1.02kg | d: 0,01mg
  • WAY 2.5Y.KO Mass Comparator
    Max: 2.3kg | d: 0,1mg
  • WAY 5.5Y.KO Mass Comparator
    Max: 5.05kg | d: 0,1mg
  • WAY 200.5Y.KO Mass Comparator
    Max: 210g | d: 0,001mg
  • WAY 1200.5Y.KO Mass Comparator
    Max: 1200g | d: 0,1mg
  • WAY 5100.5Y.KO Mass Comparator
    Max: 5100g | d: 1mg
emailAsk about the product
Rating:
star star star star star
Code:
WL-406-0038

Overview


The newest line of Radwag Mass Comparators enables adjusting mass standards and weights according to the OIML recommendations (R-111) from 1 mg to 5 kg for E1 class and lower.

Mass comparators are used both for ensuring traceability of mass measurements, and verification of weights in accordance with the principles of legal metrology. RADWAG Mass Comparators have gained recognition among Accredited Calibration Laboratories in many countries.

Mass comparator WAY 5Y.KO series similarly to other models, comprises two components. One of them holds the electronic module, and the other precise mechanical measuring system.
The WAY 5Y.KO series comes standard with an aesthetic, large weighing chamber with glass anti-draft shield. All elements of the weighing chamber are manufactured from glass or metal to minimize the influence of electrostatic charges on weighing result. Mass comparator WAY 5Y.KO series features an intuitive menu supporting a user while operating the instrument.

2 years warranty
2 years warranty
CE
CE

Datasheet

E1
500 g ÷ 1 kg
E2
100 g ÷ 1 kg
F1
10 g ÷ 1 kg
F2
1 g ÷ 1 kg
M1
1 g ÷ 1 kg
M2
1 g ÷ 1 kg
Maximum capacity [Max]
1,02 kg
Readability [d]
0,01 mg
Standard repeatability [5% Max]
0,025 mg
Standard repeatability [Max]
0,03 mg
Permissible repeatability
0,05 mg
Eccentricity (tested load)
1d / 1 mm
Electric compensation range
-10 g ÷ +20 g
Stabilization time
30 s
Adjustment
external
Display
10″ touchscreen
Supplementary weights internal
half automatic
Supplementary weights external
50 g, 30 g, 2× 10 g
Communication interface
USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot
Operating temperature
+15 ÷ +30 °C
Operating temperature change rate
±0,5°C/12h (±0,3°C/4h)
Relative humidity
40% ÷ 60%
Relative humidity change rate
± 3 % / 4 h
Weighing pan dimensions
ø60 mm
Weighing device dimensions
385×215×525 mm
Controling device dimensions
249×170×72 mm
Anti-draft chamber dimensions
660×470×700 mm
Packaging dimensions
860×800×550 mm
Chamber packaging size
820×850×630 mm
Net weight
38 kg
Gross weight
58 kg
WAY 2.5Y.KO Mass Comparator
This image is for reference only.
WAY 2.5Y.KO Mass ComparatorWAY 2.5Y.KO Mass ComparatorWAY 2.5Y.KO Mass Comparator
close Exit
This image is for reference only.
WAY 2.5Y.KO Mass ComparatorWAY 2.5Y.KO Mass ComparatorWAY 2.5Y.KO Mass Comparator
Availability:
Estimated shipping date :
Price:
Individual pricing
Select
a variant:
WAY 2.5Y.KO Mass Comparatorkeyboard_arrow_down
  • WAY 100.5Y.KO Mass Comparator
    Max: 110g | d: 0,001mg
  • WAY 500.5Y.KO Mass Comparator
    Max: 520g | d: 0,01mg
  • WAY 1.5Y.KO Mass Comparator
    Max: 1.02kg | d: 0,01mg
  • WAY 2.5Y.KO Mass Comparator
    Max: 2.3kg | d: 0,1mg
  • WAY 5.5Y.KO Mass Comparator
    Max: 5.05kg | d: 0,1mg
  • WAY 200.5Y.KO Mass Comparator
    Max: 210g | d: 0,001mg
  • WAY 1200.5Y.KO Mass Comparator
    Max: 1200g | d: 0,1mg
  • WAY 5100.5Y.KO Mass Comparator
    Max: 5100g | d: 1mg
emailAsk about the product
Rating:
star star star star star
Code:
WL-406-0043

Overview


The newest line of Radwag Mass Comparators enables adjusting mass standards and weights according to the OIML recommendations (R-111) from 1 mg to 5 kg for E1 class and lower.

Mass comparators are used both for ensuring traceability of mass measurements, and verification of weights in accordance with the principles of legal metrology. RADWAG Mass Comparators have gained recognition among Accredited Calibration Laboratories in many countries.

Mass comparator WAY 5Y.KO series similarly to other models, comprises two components. One of them holds the electronic module, and the other precise mechanical measuring system.
The WAY 5Y.KO series comes standard with an aesthetic, large weighing chamber with glass anti-draft shield. All elements of the weighing chamber are manufactured from glass or metal to minimize the influence of electrostatic charges on weighing result. Mass comparator WAY 5Y.KO series features an intuitive menu supporting a user while operating the instrument.

2 years warranty
2 years warranty
CE
CE

Datasheet

E1
1 kg ÷ 2 kg
E2
500 g ÷ 2 kg
F1
100 g ÷ 2 kg
F2
10 g ÷ 2 kg
M1
1 g ÷ 2 kg
M2
1 g ÷ 2 kg
Maximum capacity [Max]
2,3 kg
Readability [d]
0,1 mg
Standard repeatability [5% Max]
0,08 mg
Standard repeatability [Max]
0,1 mg
Permissible repeatability
0,2 mg
Eccentricity (tested load)
0 mg*
Electric compensation range
-50 g ÷ +300 g
Stabilization time
20 s
Adjustment
external
Display
10″ touchscreen
Supplementary weights internal
half automatic
Supplementary weights external
2× 100 g
Communication interface
USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot
Operating temperature
+15 ÷ +30 °C
Operating temperature change rate
±0,5°C/12h (±0,3°C/4h)
Relative humidity
40% ÷ 60%
Relative humidity change rate
±3%/4h
Weighing pan dimensions
ø70 mm
Weighing device dimensions
385×215×525 mm
Controling device dimensions
249×170×72 mm
Anti-draft chamber dimensions
660×470×700 mm
Packaging dimensions
945×820×1260 mm
Chamber packaging size
820×850×630 mm
Net weight
39,5 kg
Gross weight
59,5 kg
WAY 5.5Y.KO Mass Comparator
This image is for reference only.
WAY 5.5Y.KO Mass ComparatorWAY 5.5Y.KO Mass ComparatorWAY 5.5Y.KO Mass Comparator
close Exit
This image is for reference only.
WAY 5.5Y.KO Mass ComparatorWAY 5.5Y.KO Mass ComparatorWAY 5.5Y.KO Mass Comparator
Availability:
Estimated shipping date :
Price:
Individual pricing
Select
a variant:
WAY 5.5Y.KO Mass Comparatorkeyboard_arrow_down
  • WAY 100.5Y.KO Mass Comparator
    Max: 110g | d: 0,001mg
  • WAY 500.5Y.KO Mass Comparator
    Max: 520g | d: 0,01mg
  • WAY 1.5Y.KO Mass Comparator
    Max: 1.02kg | d: 0,01mg
  • WAY 2.5Y.KO Mass Comparator
    Max: 2.3kg | d: 0,1mg
  • WAY 5.5Y.KO Mass Comparator
    Max: 5.05kg | d: 0,1mg
  • WAY 200.5Y.KO Mass Comparator
    Max: 210g | d: 0,001mg
  • WAY 1200.5Y.KO Mass Comparator
    Max: 1200g | d: 0,1mg
  • WAY 5100.5Y.KO Mass Comparator
    Max: 5100g | d: 1mg
emailAsk about the product
Rating:
star star star star star
Code:
WL-406-0044

Overview


The newest line of Radwag Mass Comparators enables adjusting mass standards and weights according to the OIML recommendations (R-111) from 1 mg to 5 kg for E1 class and lower.

Mass comparators are used both for ensuring traceability of mass measurements, and verification of weights in accordance with the principles of legal metrology. RADWAG Mass Comparators have gained recognition among Accredited Calibration Laboratories in many countries.

Mass comparator WAY 5Y.KO series similarly to other models, comprises two components. One of them holds the electronic module, and the other precise mechanical measuring system.
The WAY 5Y.KO series comes standard with an aesthetic, large weighing chamber with glass anti-draft shield. All elements of the weighing chamber are manufactured from glass or metal to minimize the influence of electrostatic charges on weighing result. Mass comparator WAY 5Y.KO series features an intuitive menu supporting a user while operating the instrument.

2 years warranty
2 years warranty
CE
CE

Datasheet

E1
2 kg ÷ 5 kg
E2
500 g ÷ 5 kg
F1
200 g ÷ 5 kg
F2
20 g ÷ 5 kg
M1
1 g ÷ 5 kg
M2
1 g ÷ 5 kg
Maximum capacity [Max]
5,05 kg
Readability [d]
0,1 mg
Standard repeatability [5% Max]
0,15 mg
Standard repeatability [Max]
0,2 mg
Permissible repeatability
0,35 mg
Eccentricity (tested load)
0 mg*
Electric compensation range
-10 g ÷ +50 g
Stabilization time
20 s
Adjustment
external
Display
10″ touchscreen
Supplementary weights internal
half automatic
Supplementary weights external
500 g, 300 g, 100 g, 50 g, 30 g, 2× 10 g
Communication interface
USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot
Operating temperature
+15 ÷ +30 °C
Operating temperature change rate
±0,5°C/12h (±0,3°C/4h)
Relative humidity
40% ÷ 60%
Relative humidity change rate
±5%/4h
Weighing pan dimensions
ø90 mm
Weighing device dimensions
385×217×545 mm
Controling device dimensions
249×170×72 mm
Anti-draft chamber dimensions
560×340×570 mm
Packaging dimensions
945×820×1260 mm
Chamber packaging size
820×850×630 mm
Net weight
39 kg
Gross weight
59 kg
WAY 200.5Y.KO Mass Comparator
This image is for reference only.
WAY 200.5Y.KO Mass ComparatorWAY 200.5Y.KO Mass ComparatorWAY 200.5Y.KO Mass Comparator
close Exit
This image is for reference only.
WAY 200.5Y.KO Mass ComparatorWAY 200.5Y.KO Mass ComparatorWAY 200.5Y.KO Mass Comparator
Availability:
Estimated shipping date :
Price:
Individual pricing
Select
a variant:
WAY 200.5Y.KO Mass Comparatorkeyboard_arrow_down
  • WAY 100.5Y.KO Mass Comparator
    Max: 110g | d: 0,001mg
  • WAY 500.5Y.KO Mass Comparator
    Max: 520g | d: 0,01mg
  • WAY 1.5Y.KO Mass Comparator
    Max: 1.02kg | d: 0,01mg
  • WAY 2.5Y.KO Mass Comparator
    Max: 2.3kg | d: 0,1mg
  • WAY 5.5Y.KO Mass Comparator
    Max: 5.05kg | d: 0,1mg
  • WAY 200.5Y.KO Mass Comparator
    Max: 210g | d: 0,001mg
  • WAY 1200.5Y.KO Mass Comparator
    Max: 1200g | d: 0,1mg
  • WAY 5100.5Y.KO Mass Comparator
    Max: 5100g | d: 1mg
emailAsk about the product
Rating:
star star star star star
Code:
WL-406-0040

Overview


The newest line of Radwag Mass Comparators enables adjusting mass standards and weights according to the OIML recommendations (R-111) from 1 mg to 5 kg for E1 class and lower.

Mass comparators are used both for ensuring traceability of mass measurements, and verification of weights in accordance with the principles of legal metrology. RADWAG Mass Comparators have gained recognition among Accredited Calibration Laboratories in many countries.

Mass comparator WAY 5Y.KO series similarly to other models, comprises two components. One of them holds the electronic module, and the other precise mechanical measuring system.
The WAY 5Y.KO series comes standard with an aesthetic, large weighing chamber with glass anti-draft shield. All elements of the weighing chamber are manufactured from glass or metal to minimize the influence of electrostatic charges on weighing result. Mass comparator WAY 5Y.KO series features an intuitive menu supporting a user while operating the instrument.

2 years warranty
2 years warranty
CE
CE

Datasheet

E1
5 g ÷ 200 g
E2
100 mg ÷ 200 g
F1
1 mg ÷ 200 g
F2
1 mg ÷ 200 g
M1
1 mg ÷ 200 g
M2
1 mg ÷ 200 g
Maximum capacity [Max]
210 g
Readability [d]
0,001 mg
Standard repeatability [5% Max]
3 µg
Standard repeatability [Max]
4 µg
Permissible repeatability
6 µg
Eccentricity (tested load)
0 mg*
Electric compensation range
-1 g ÷ +10 g
Stabilization time
30 s
Adjustment
external
Display
10″ touchscreen
Supplementary weights internal
half automatic
Supplementary weights external
10 g
Communication interface
USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot
Operating temperature
+15 ÷ +30 °C
Operating temperature change rate
±0,5°C/12h (±0,3°C/4h)
Relative humidity
40% ÷ 60%
Relative humidity change rate
± 3 % / 4 h
Weighing pan dimensions
ø40 mm
Weighing device dimensions
385×217×525 mm
Controling device dimensions
249×170×72 mm
Anti-draft chamber dimensions
560×565×340 mm
Packaging dimensions
860×750×570 mm
Chamber packaging size
860×830×840 mm
Net weight
22,5 kg
Gross weight
32,5 kg
WAY 1200.5Y.KO Mass Comparator
This image is for reference only.
WAY 1200.5Y.KO Mass ComparatorWAY 1200.5Y.KO Mass Comparator
close Exit
This image is for reference only.
WAY 1200.5Y.KO Mass ComparatorWAY 1200.5Y.KO Mass Comparator
Availability:
Estimated shipping date :
Price:
Individual pricing
Select
a variant:
WAY 1200.5Y.KO Mass Comparatorkeyboard_arrow_down
  • WAY 100.5Y.KO Mass Comparator
    Max: 110g | d: 0,001mg
  • WAY 500.5Y.KO Mass Comparator
    Max: 520g | d: 0,01mg
  • WAY 1.5Y.KO Mass Comparator
    Max: 1.02kg | d: 0,01mg
  • WAY 2.5Y.KO Mass Comparator
    Max: 2.3kg | d: 0,1mg
  • WAY 5.5Y.KO Mass Comparator
    Max: 5.05kg | d: 0,1mg
  • WAY 200.5Y.KO Mass Comparator
    Max: 210g | d: 0,001mg
  • WAY 1200.5Y.KO Mass Comparator
    Max: 1200g | d: 0,1mg
  • WAY 5100.5Y.KO Mass Comparator
    Max: 5100g | d: 1mg
emailAsk about the product
Rating:
star star star star star
Code:
WL-406-0042

Overview


The newest line of Radwag Mass Comparators enables adjusting mass standards and weights according to the OIML recommendations (R-111) from 1 mg to 5 kg for E1 class and lower.

Mass comparators are used both for ensuring traceability of mass measurements, and verification of weights in accordance with the principles of legal metrology. RADWAG Mass Comparators have gained recognition among Accredited Calibration Laboratories in many countries.

Mass comparator WAY 5Y.KO series similarly to other models, comprises two components. One of them holds the electronic module, and the other precise mechanical measuring system.
The WAY 5Y.KO series comes standard with an aesthetic, large weighing chamber with glass anti-draft shield. All elements of the weighing chamber are manufactured from glass or metal to minimize the influence of electrostatic charges on weighing result. Mass comparator WAY 5Y.KO series features an intuitive menu supporting a user while operating the instrument.

2 years warranty
2 years warranty
CE
CE

Datasheet

E1
-
E2
500 g ÷ 1 kg
F1
100 g ÷ 1 kg
F2
5 g ÷ 1 kg
M1
1 g ÷ 1 kg
M2
1 g ÷ 1 kg
Maximum capacity [Max]
1200 g
Readability [d]
0,1 mg
Standard repeatability [5% Max]
0,08 mg
Standard repeatability [Max]
0,1 mg
Permissible repeatability
0,2 mg
Eccentricity (tested load)
1d / 1 mm
Electric compensation range
0 g ÷ +1200 g
Stabilization time
10 s
Adjustment
external
Display
10″ touchscreen
Supplementary weights internal
brak
Supplementary weights external
brak
Communication interface
USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot
Operating temperature
+15 ÷ +30 °C
Operating temperature change rate
±0,5°C/12h (±0,3°C/4h)
Relative humidity
40% ÷ 60%
Relative humidity change rate
± 3 % / 4 h
Weighing pan dimensions
ø80 mm
Weighing device dimensions
385×203×407 mm
Controling device dimensions
249×170×72 mm
Anti-draft chamber dimensions
560×340×455 mm
Packaging dimensions
860×750×560 mm
Chamber packaging size
820×735×630 mm
Net weight
16 kg
Gross weight
31 kg
WAY 5100.5Y.KO Mass Comparator
This image is for reference only.
WAY 5100.5Y.KO Mass ComparatorWAY 5100.5Y.KO Mass ComparatorWAY 5100.5Y.KO Mass Comparator
close Exit
This image is for reference only.
WAY 5100.5Y.KO Mass ComparatorWAY 5100.5Y.KO Mass ComparatorWAY 5100.5Y.KO Mass Comparator
Availability:
Estimated shipping date :
Price:
Individual pricing
Select
a variant:
WAY 5100.5Y.KO Mass Comparatorkeyboard_arrow_down
  • WAY 100.5Y.KO Mass Comparator
    Max: 110g | d: 0,001mg
  • WAY 500.5Y.KO Mass Comparator
    Max: 520g | d: 0,01mg
  • WAY 1.5Y.KO Mass Comparator
    Max: 1.02kg | d: 0,01mg
  • WAY 2.5Y.KO Mass Comparator
    Max: 2.3kg | d: 0,1mg
  • WAY 5.5Y.KO Mass Comparator
    Max: 5.05kg | d: 0,1mg
  • WAY 200.5Y.KO Mass Comparator
    Max: 210g | d: 0,001mg
  • WAY 1200.5Y.KO Mass Comparator
    Max: 1200g | d: 0,1mg
  • WAY 5100.5Y.KO Mass Comparator
    Max: 5100g | d: 1mg
emailAsk about the product
Rating:
star star star star star
Code:
WL-406-0045

Overview


The newest line of Radwag Mass Comparators enables adjusting mass standards and weights according to the OIML recommendations (R-111) from 1 mg to 5 kg for E1 class and lower.

Mass comparators are used both for ensuring traceability of mass measurements, and verification of weights in accordance with the principles of legal metrology. RADWAG Mass Comparators have gained recognition among Accredited Calibration Laboratories in many countries.

Mass comparator WAY 5Y.KO series similarly to other models, comprises two components. One of them holds the electronic module, and the other precise mechanical measuring system.
The WAY 5Y.KO series comes standard with an aesthetic, large weighing chamber with glass anti-draft shield. All elements of the weighing chamber are manufactured from glass or metal to minimize the influence of electrostatic charges on weighing result. Mass comparator WAY 5Y.KO series features an intuitive menu supporting a user while operating the instrument.

2 years warranty
2 years warranty
CE
CE

Datasheet

E1
-
E2
-
F1
5 kg
F2
2 kg ÷ 5 kg
M1
500 g ÷ 5 kg
M2
200 g ÷ 5 kg
Maximum capacity [Max]
5100 g
Readability [d]
1 mg
Standard repeatability [5% Max]
0,8 mg
Standard repeatability [Max]
1 mg
Permissible repeatability
2 mg
Eccentricity (tested load)
1d / 5 mm
Electric compensation range
0 g ÷ +5100 g
Stabilization time
10 s
Adjustment
external
Display
10″ touchscreen
Supplementary weights internal
brak
Supplementary weights external
brak
Communication interface
USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot
Operating temperature
+15 ÷ +30 °C
Operating temperature change rate
±0,5°C/12h (±0,3°C/4h)
Relative humidity
40% ÷ 60%
Relative humidity change rate
± 3 % / 4 h
Weighing pan dimensions
ø100 mm
Weighing device dimensions
385×195×210 mm
Controling device dimensions
249×170×72 mm
Anti-draft chamber dimensions
560×340×455 mm
Packaging dimensions
945×820×1260 mm
Chamber packaging size
820×735×630 mm
Net weight
16 kg
Gross weight
31 kg
