Do you need a balance that not only determines weight with impressive accuracy, but also performs a digital audit, responds to your voice commands and sends you light messages?

If so, learn about the functionality of the ELLIPSIS series of balances:

Digital Weighing Auditor

Ensures that your balance is ready for use. It enables air buoyancy compensation in real-time. What is more, it informs about the need for a balance inspection or a periodic audit of the balance’s accuracy and sensitivity.

10-Inch Display

Bigger screen – 10’’ – means more information in one place. On the new ELLIPSIS terminal, you will see up to 3 screens, widgets, graphs, statuses, notes, handy measurement history.

Uncompromising User Verification

For the first time ever, the balance will verify the user using a password,
RFID card, fingerprint reader, facial recognition mechanism, or any combination of these.

Ambient Light – An Innovative Way for the Balance to Communicate With the User

The light colour will tell you about status, process results, procedures, or alerts.

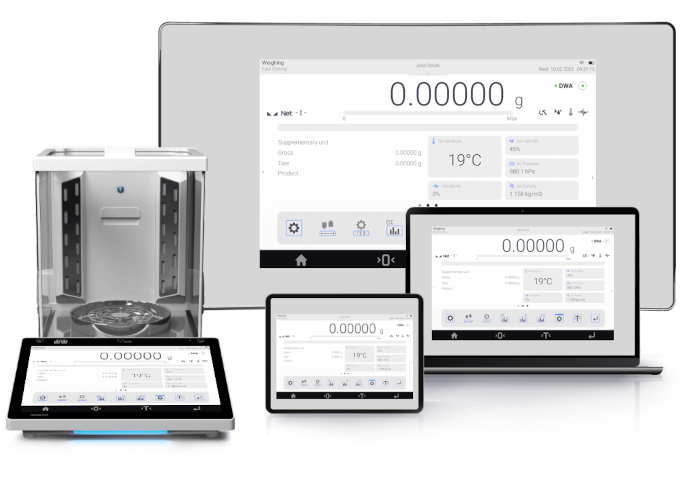

Hotspot

Use the balance on any device connected to it. This can be a smartphone, tablet, or computer.

RFID

ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. They can also be used to identify a user.

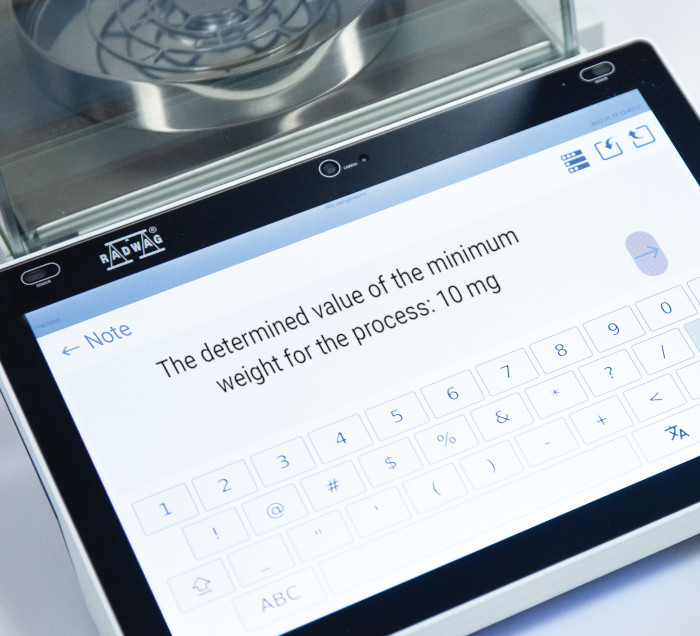

Live Note – Note Down Your Conclusions

It’s the first time you can add a voice memo to a measurement series or procedure report. If you prefer to write it down, ELLIPSIS allows you to add a text note.

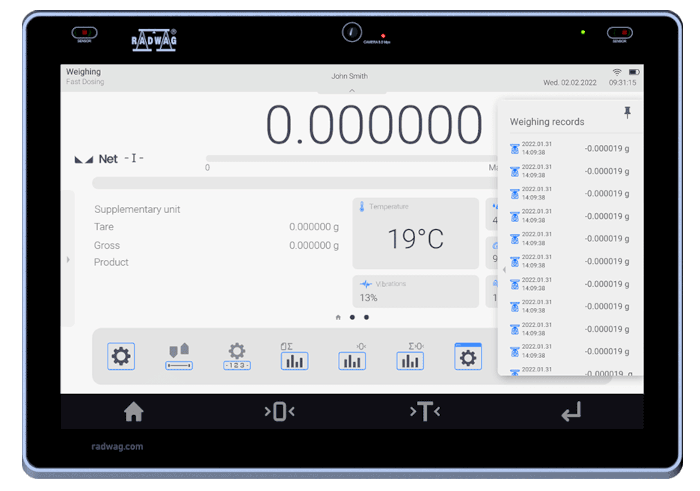

Handy Library

This is where a series of recent measurements or a report ready for digital signature, according to 21 CFR Part 11, can be found.

Widgets

Prepared to display what you need most at any given moment.

Automatic Leveling of the Balance ReflexLEVEL System

Instead of manually leveling your scale - level it automatically.
The ReflexLEVEL System saves you time and gives you maximum precision in your measurements.

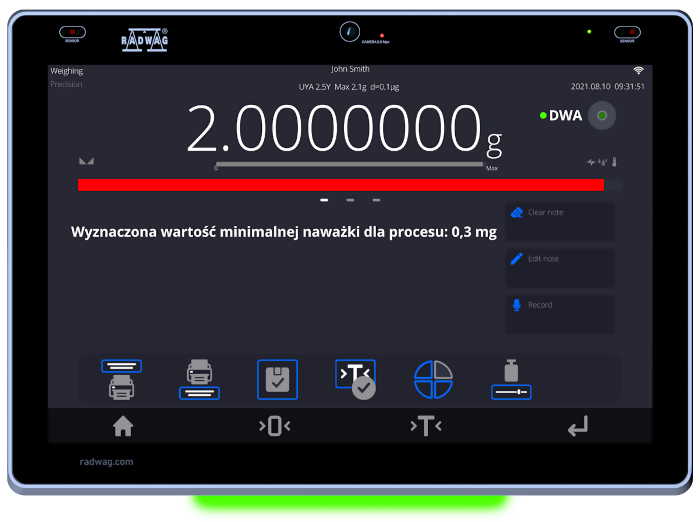

Smart Min Weight

The balance displays whether the value of the weight you want to weigh is below or above the minimum weight threshold.

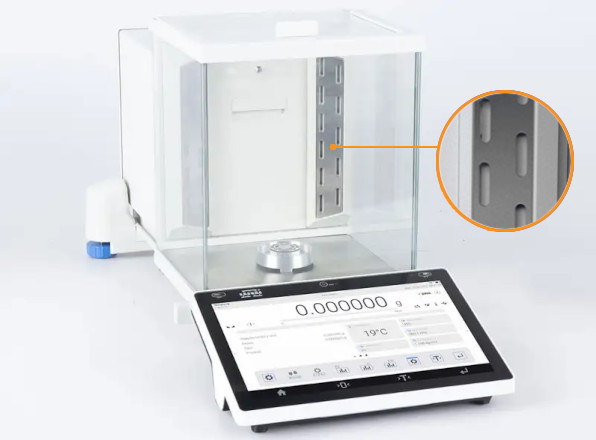

Ionizer

Do you have an electrostatic sample that cannot be weighed? The ionizer will neutralize its electrostatic charge.

21 CFR Part 11

Do you work in the pharmaceutical industry? Do you need a digital signature?

We are offering the laboratory balance which as a standalone fully meets the requirements of 21 CFR Part 11/ EU GMP Annex 11.

- Full data security

- Electronic signatures

- Validations

- Electronic records

- Audit trails

Two-point adjustment

Adjacency, which takes place at two measurement points instead of one, improves measurement precision over the full weighing range. And what does this mean for you? More accurate measurement.

* RFID ISO/IEC 14443 Type A, 13.56 MHz

Verification

5 years warranty

Datasheet

Maximum capacity [Max]

6/21 g

Minimum load

0,1 mg

Readability [d]

1/2 µg

Verification unit [e]

1 mg

Tare range

-21 g

Standard repeatability [5% Max]

1,3 µg

Standard repeatability [Max]

3,5 µg

Standard minimum weight (USP)

2,6 mg

Standard minimum weight (U=1%, k=2)

0,26 mg

Permissible repeatability [5% Max]

2 µg

Permissible repeatability [Max]

5 µg

Linearity

±9 µg

Eccentric load deviation

15 µg

Sensitivity time drift

1×10⁻⁶/Year×Rt

Stabilization time

~3,5 s

Adjustment

internal (automatic)

Leveling system

automatic - Reflex Level System

OIML Class

Display

10″ touchscreen

Protection class

IP 43

Delivery components

Microbalance, weighing pan, weighing pan shield, power supply, automatic pipette calibration adapter: (base, bottom ring, glass vessel, pipette calibration adapter, evaporation ring, weighing pan, glass lid, mechanical closing cover, protecting screw), brush, fabric dust cover.

Communication interface

USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot

Power supply

Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2,4A
Balance: 12 – 15V DC 1,4A max*

Operating temperature

+10 — +40 °C

Operating temperature change rate

±0,3°C/1h (±1°C/8h)

Relative humidity

40% — 80%

Relative humidity change rate

±1%/h (±4%/8h)

Weighing chamber dimensions

199×170×217 mm

Weighing pan dimensions

ø26 mm

Packaging dimensions

750×492×595 mm

Net weight

14,5 kg

Gross weight

18,9 kg

This image is for reference only.

close Exit

This image is for reference only.

Availability:

Estimated shipping date :

Price:

Individual pricing

Select
a variant:

XA 21/52.5Y.M.A.P Microbalancekeyboard_arrow_down

XA 6/21.5Y.M.A.P Microbalance
Max: 6/21g | d: 1/2µg
XA 21/52.5Y.M.A.P Microbalance
Max: 21/52g | d: 1/5µg
XA 21.5Y.M.A.P Microbalance
Max: 21g | d: 1µg
XA 52.5Y.M.A.P Microbalance
Max: 52g | d: 5µg
XA 53.5Y.M.A.P Microbalance
Max: 53g | d: 1µg

emailAsk about the product

Rating:

star star star star star

Code:

WL-112-1001

Overview

Do you need a balance that not only determines weight with impressive accuracy, but also performs a digital audit, responds to your voice commands and sends you light messages?

If so, learn about the functionality of the ELLIPSIS series of balances:

Digital Weighing Auditor

10-Inch Display

Uncompromising User Verification

For the first time ever, the balance will verify the user using a password,
RFID card, fingerprint reader, facial recognition mechanism, or any combination of these.

Ambient Light – An Innovative Way for the Balance to Communicate With the User

The light colour will tell you about status, process results, procedures, or alerts.

Hotspot

Use the balance on any device connected to it. This can be a smartphone, tablet, or computer.

RFID

ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. They can also be used to identify a user.

Live Note – Note Down Your Conclusions

It’s the first time you can add a voice memo to a measurement series or procedure report. If you prefer to write it down, ELLIPSIS allows you to add a text note.

Handy Library

This is where a series of recent measurements or a report ready for digital signature, according to 21 CFR Part 11, can be found.

Widgets

Prepared to display what you need most at any given moment.

Automatic Leveling of the Balance ReflexLEVEL System

Instead of manually leveling your scale - level it automatically.
The ReflexLEVEL System saves you time and gives you maximum precision in your measurements.

Smart Min Weight

The balance displays whether the value of the weight you want to weigh is below or above the minimum weight threshold.

Ionizer

Do you have an electrostatic sample that cannot be weighed? The ionizer will neutralize its electrostatic charge.

21 CFR Part 11

Do you work in the pharmaceutical industry? Do you need a digital signature?

We are offering the laboratory balance which as a standalone fully meets the requirements of 21 CFR Part 11/ EU GMP Annex 11.

- Full data security

- Electronic signatures

- Validations

- Electronic records

- Audit trails

Two-point adjustment

Adjacency, which takes place at two measurement points instead of one, improves measurement precision over the full weighing range. And what does this mean for you? More accurate measurement.

* RFID ISO/IEC 14443 Type A, 13.56 MHz

Verification

5 years warranty

Datasheet

Maximum capacity [Max]

21/52 g

Minimum load

0,1 mg

Readability [d]

1/5 µg

Verification unit [e]

1 mg

Tare range

-52 g

Standard repeatability [5% Max]

1,5 µg

Standard repeatability [Max]

6 µg

Standard minimum weight (USP)

3 mg

Standard minimum weight (U=1%, k=2)

0,3 mg

Permissible repeatability [5% Max]

2,4 µg

Permissible repeatability [Max]

8 µg

Linearity

±20 µg

Eccentric load deviation

20 µg

Sensitivity time drift

1×10⁻⁶/Year×Rt

Stabilization time

~3,5 s

Adjustment

internal (automatic)

Leveling system

automatic - Reflex Level System

OIML Class

Display

10″ touchscreen

Protection class

IP 43

Delivery components

Communication interface

USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot

Power supply

Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2,4A
Balance: 12 – 15V DC 1,4A max*

Operating temperature

+10 — +40 °C

Operating temperature change rate

±0,3°C/1h (±1°C/8h)

Relative humidity

40% — 80%

Relative humidity change rate

±1%/h (±4%/8h)

Weighing chamber dimensions

199×170×217 mm

Weighing pan dimensions

ø26 mm

Packaging dimensions

750×492×595 mm

Net weight

14,5 kg

Gross weight

18,9 kg

This image is for reference only.

close Exit

This image is for reference only.

Availability:

Estimated shipping date :

Price:

Individual pricing

Select
a variant:

XA 21.5Y.M.A.P Microbalancekeyboard_arrow_down

XA 6/21.5Y.M.A.P Microbalance
Max: 6/21g | d: 1/2µg
XA 21/52.5Y.M.A.P Microbalance
Max: 21/52g | d: 1/5µg
XA 21.5Y.M.A.P Microbalance
Max: 21g | d: 1µg
XA 52.5Y.M.A.P Microbalance
Max: 52g | d: 5µg
XA 53.5Y.M.A.P Microbalance
Max: 53g | d: 1µg

emailAsk about the product

Rating:

star star star star star

Code:

WL-112-0001

Overview

Do you need a balance that not only determines weight with impressive accuracy, but also performs a digital audit, responds to your voice commands and sends you light messages?

If so, learn about the functionality of the ELLIPSIS series of balances:

Digital Weighing Auditor

10-Inch Display

Uncompromising User Verification

For the first time ever, the balance will verify the user using a password,
RFID card, fingerprint reader, facial recognition mechanism, or any combination of these.

Ambient Light – An Innovative Way for the Balance to Communicate With the User

The light colour will tell you about status, process results, procedures, or alerts.

Hotspot

Use the balance on any device connected to it. This can be a smartphone, tablet, or computer.

RFID

ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. They can also be used to identify a user.

Live Note – Note Down Your Conclusions

It’s the first time you can add a voice memo to a measurement series or procedure report. If you prefer to write it down, ELLIPSIS allows you to add a text note.

Handy Library

This is where a series of recent measurements or a report ready for digital signature, according to 21 CFR Part 11, can be found.

Widgets

Prepared to display what you need most at any given moment.

Automatic Leveling of the Balance ReflexLEVEL System

Instead of manually leveling your scale - level it automatically.
The ReflexLEVEL System saves you time and gives you maximum precision in your measurements.

Smart Min Weight

The balance displays whether the value of the weight you want to weigh is below or above the minimum weight threshold.

Ionizer

Do you have an electrostatic sample that cannot be weighed? The ionizer will neutralize its electrostatic charge.

21 CFR Part 11

Do you work in the pharmaceutical industry? Do you need a digital signature?

We are offering the laboratory balance which as a standalone fully meets the requirements of 21 CFR Part 11/ EU GMP Annex 11.

- Full data security

- Electronic signatures

- Validations

- Electronic records

- Audit trails

Two-point adjustment

Adjacency, which takes place at two measurement points instead of one, improves measurement precision over the full weighing range. And what does this mean for you? More accurate measurement.

* RFID ISO/IEC 14443 Type A, 13.56 MHz

Verification

5 years warranty

Datasheet

Maximum capacity [Max]

21 g

Minimum load

0,1 mg

Readability [d]

1 µg

Verification unit [e]

1 mg

Tare range

-21 g

Standard repeatability [5% Max]

1,3 µg

Standard repeatability [Max]

3,5 µg

Standard minimum weight (USP)

2,6 mg

Standard minimum weight (U=1%, k=2)

0,26 mg

Permissible repeatability [5% Max]

2 µg

Permissible repeatability [Max]

5 µg

Linearity

±9 µg

Eccentric load deviation

15 µg

Sensitivity time drift

1×10⁻⁶/Year×Rt

Stabilization time

~3,5 s

Adjustment

internal (automatic)

Leveling system

automatic - Reflex Level System

OIML Class

Display

10″ touchscreen

Protection class

IP 43

Delivery components

Communication interface

USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot

Power supply

Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2,4A
Balance: 12 – 15V DC 1,4A max*

Operating temperature

+10 — +40 °C

Operating temperature change rate

±0,3°C/1h (±1°C/8h)

Relative humidity

40% — 80%

Relative humidity change rate

±1%/h (±4%/8h)

Weighing chamber dimensions

199×170×217 mm

Weighing pan dimensions

ø26 mm

Packaging dimensions

750×492×595 mm

Net weight

14,5 kg

Gross weight

18,9 kg

This image is for reference only.

close Exit

This image is for reference only.

Availability:

Estimated shipping date :

Price:

Individual pricing

Select
a variant:

XA 52.5Y.M.A.P Microbalancekeyboard_arrow_down

XA 6/21.5Y.M.A.P Microbalance
Max: 6/21g | d: 1/2µg
XA 21/52.5Y.M.A.P Microbalance
Max: 21/52g | d: 1/5µg
XA 21.5Y.M.A.P Microbalance
Max: 21g | d: 1µg
XA 52.5Y.M.A.P Microbalance
Max: 52g | d: 5µg
XA 53.5Y.M.A.P Microbalance
Max: 53g | d: 1µg

emailAsk about the product

Rating:

star star star star star

Code:

WL-112-0002

Overview

Do you need a balance that not only determines weight with impressive accuracy, but also performs a digital audit, responds to your voice commands and sends you light messages?

If so, learn about the functionality of the ELLIPSIS series of balances:

Digital Weighing Auditor

10-Inch Display

Uncompromising User Verification

For the first time ever, the balance will verify the user using a password,
RFID card, fingerprint reader, facial recognition mechanism, or any combination of these.

Ambient Light – An Innovative Way for the Balance to Communicate With the User

The light colour will tell you about status, process results, procedures, or alerts.

Hotspot

Use the balance on any device connected to it. This can be a smartphone, tablet, or computer.

RFID

ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. They can also be used to identify a user.

Live Note – Note Down Your Conclusions

It’s the first time you can add a voice memo to a measurement series or procedure report. If you prefer to write it down, ELLIPSIS allows you to add a text note.

Handy Library

This is where a series of recent measurements or a report ready for digital signature, according to 21 CFR Part 11, can be found.

Widgets

Prepared to display what you need most at any given moment.

Automatic Leveling of the Balance ReflexLEVEL System

Instead of manually leveling your scale - level it automatically.
The ReflexLEVEL System saves you time and gives you maximum precision in your measurements.

Smart Min Weight

The balance displays whether the value of the weight you want to weigh is below or above the minimum weight threshold.

Ionizer

Do you have an electrostatic sample that cannot be weighed? The ionizer will neutralize its electrostatic charge.

21 CFR Part 11

Do you work in the pharmaceutical industry? Do you need a digital signature?

We are offering the laboratory balance which as a standalone fully meets the requirements of 21 CFR Part 11/ EU GMP Annex 11.

- Full data security

- Electronic signatures

- Validations

- Electronic records

- Audit trails

Two-point adjustment

Adjacency, which takes place at two measurement points instead of one, improves measurement precision over the full weighing range. And what does this mean for you? More accurate measurement.

* RFID ISO/IEC 14443 Type A, 13.56 MHz

Verification

5 years warranty

Datasheet

Maximum capacity [Max]

52 g

Minimum load

0,5 mg

Readability [d]

5 µg

Verification unit [e]

1 mg

Tare range

-52 g

Standard repeatability [5% Max]

2,2 µg

Standard repeatability [Max]

6 µg

Standard minimum weight (USP)

4,4 mg

Standard minimum weight (U=1%, k=2)

0,44 mg

Permissible repeatability [5% Max]

3,4 µg

Permissible repeatability [Max]

8 µg

Linearity

±20 µg

Eccentric load deviation

20 µg

Sensitivity time drift

1×10⁻⁶/Year×Rt

Stabilization time

~3,5 s

Adjustment

internal (automatic)

Leveling system

automatic - Reflex Level System

OIML Class

Display

10″ touchscreen

Protection class

IP 43

Delivery components

Communication interface

USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot

Power supply

Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2,4A
Balance: 12 – 15V DC 1,4A max*

Operating temperature

+10 — +40 °C

Operating temperature change rate

±0,3°C/1h (±1°C/8h)

Relative humidity

40% — 80%

Relative humidity change rate

±1%/h (±4%/8h)

Weighing chamber dimensions

199×170×217 mm

Weighing pan dimensions

ø26 mm

Packaging dimensions

750×492×595 mm

Net weight

14,5 kg

Gross weight

18,9 kg

This image is for reference only.

close Exit

This image is for reference only.

Availability:

Estimated shipping date :

Price:

Individual pricing

Select
a variant:

XA 53.5Y.M.A.P Microbalancekeyboard_arrow_down

XA 6/21.5Y.M.A.P Microbalance
Max: 6/21g | d: 1/2µg
XA 21/52.5Y.M.A.P Microbalance
Max: 21/52g | d: 1/5µg
XA 21.5Y.M.A.P Microbalance
Max: 21g | d: 1µg
XA 52.5Y.M.A.P Microbalance
Max: 52g | d: 5µg
XA 53.5Y.M.A.P Microbalance
Max: 53g | d: 1µg

emailAsk about the product

Rating:

star star star star star

Code:

WL-112-0003

Overview

Do you need a balance that not only determines weight with impressive accuracy, but also performs a digital audit, responds to your voice commands and sends you light messages?

If so, learn about the functionality of the ELLIPSIS series of balances:

Digital Weighing Auditor

10-Inch Display

Uncompromising User Verification

For the first time ever, the balance will verify the user using a password,
RFID card, fingerprint reader, facial recognition mechanism, or any combination of these.

Ambient Light – An Innovative Way for the Balance to Communicate With the User

The light colour will tell you about status, process results, procedures, or alerts.

Hotspot

Use the balance on any device connected to it. This can be a smartphone, tablet, or computer.

RFID

ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. They can also be used to identify a user.

Live Note – Note Down Your Conclusions

It’s the first time you can add a voice memo to a measurement series or procedure report. If you prefer to write it down, ELLIPSIS allows you to add a text note.

Handy Library

This is where a series of recent measurements or a report ready for digital signature, according to 21 CFR Part 11, can be found.

Widgets

Prepared to display what you need most at any given moment.

Automatic Leveling of the Balance ReflexLEVEL System

Instead of manually leveling your scale - level it automatically.
The ReflexLEVEL System saves you time and gives you maximum precision in your measurements.

Smart Min Weight

The balance displays whether the value of the weight you want to weigh is below or above the minimum weight threshold.

Ionizer

Do you have an electrostatic sample that cannot be weighed? The ionizer will neutralize its electrostatic charge.

21 CFR Part 11

Do you work in the pharmaceutical industry? Do you need a digital signature?

We are offering the laboratory balance which as a standalone fully meets the requirements of 21 CFR Part 11/ EU GMP Annex 11.

- Full data security

- Electronic signatures

- Validations

- Electronic records

- Audit trails

Two-point adjustment

Adjacency, which takes place at two measurement points instead of one, improves measurement precision over the full weighing range. And what does this mean for you? More accurate measurement.

* RFID ISO/IEC 14443 Type A, 13.56 MHz

Verification

5 years warranty

Datasheet

Maximum capacity [Max]

53 g

Minimum load

0,1 mg

Readability [d]

1 µg

Verification unit [e]

1 mg

Tare range

-53 g

Standard repeatability [5% Max]

1,5 µg

Standard repeatability [Max]

6 µg

Standard minimum weight (USP)

3 mg

Standard minimum weight (U=1%, k=2)

0,3 mg

Permissible repeatability [5% Max]

2,4 µg

Permissible repeatability [Max]

8 µg

Linearity

±20 µg

Eccentric load deviation

20 µg

Sensitivity time drift

1×10⁻⁶/Year×Rt

Stabilization time

~3,5 s

Adjustment

internal (automatic)

Leveling system

automatic - Reflex Level System

OIML Class

Display

10″ touchscreen

Protection class

IP 43

Delivery components

Communication interface

USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot

Power supply

Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2,4A
Balance: 12 – 15V DC 1,4A max*

Operating temperature

+10 — +40 °C

Operating temperature change rate

±0,3°C/1h (±1°C/8h)

Relative humidity

40% — 80%

Relative humidity change rate

±1%/h (±4%/8h)

Weighing chamber dimensions

199×170×217 mm

Weighing pan dimensions

ø26 mm

Packaging dimensions

765×515×545 mm

Net weight

14,5 kg

Gross weight

18,9 kg

XA 5Y.M.A.P Microbalance

Overview

{{model}}

Digital Weighing Auditor

10-Inch Display

Uncompromising User Verification

Ambient Light – An Innovative Way for the Balance to Communicate With the User

Hotspot

RFID

Live Note – Note Down Your Conclusions

Handy Library

Widgets

Automatic Leveling of the Balance ReflexLEVEL System

Smart Min Weight

Ionizer

21 CFR Part 11

Two-point adjustment

Datasheet

Overview

{{model}}

Digital Weighing Auditor

10-Inch Display

Uncompromising User Verification

Ambient Light – An Innovative Way for the Balance to Communicate With the User

Hotspot

RFID

Live Note – Note Down Your Conclusions

Handy Library

Widgets

Automatic Leveling of the Balance ReflexLEVEL System

Smart Min Weight

Ionizer

21 CFR Part 11

Two-point adjustment

Datasheet

Overview

{{model}}

Digital Weighing Auditor

10-Inch Display

Uncompromising User Verification

Ambient Light – An Innovative Way for the Balance to Communicate With the User

Hotspot

RFID

Live Note – Note Down Your Conclusions

Handy Library

Widgets

Automatic Leveling of the Balance ReflexLEVEL System

Smart Min Weight

Ionizer

21 CFR Part 11

Two-point adjustment

Datasheet

Overview

{{model}}

Digital Weighing Auditor

10-Inch Display

Uncompromising User Verification

Ambient Light – An Innovative Way for the Balance to Communicate With the User

Hotspot

RFID

Live Note – Note Down Your Conclusions

Handy Library

Widgets

Automatic Leveling of the Balance ReflexLEVEL System

Smart Min Weight

Ionizer

21 CFR Part 11

Two-point adjustment

Datasheet

Overview

{{model}}

Digital Weighing Auditor

10-Inch Display

Uncompromising User Verification

Ambient Light – An Innovative Way for the Balance to Communicate With the User

Hotspot

RFID

Live Note – Note Down Your Conclusions

Handy Library

Widgets
